46.61.9 Series

Catalog

RELAY GEN PURPOSE SPDT 16A 48V

Part	Coil Resistance	Contact Rating (Current)	Approval Agency	Must Release Voltage	Mounting Type	Relay Type	Features	Operate Time	Contact Material	Coil Type	Load - Max Switching [Max]	Must Operate Voltage	Switching Voltage [Max]	Coil Voltage	Termination Style	Termination Style	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Contact Form	Load - Max Switching
Finder Relays, Inc. 46.61.9.048.0040	4.8 kOhms	16 A	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	9.6 VDC	Socketable	General Purpose	Mechanical Indicator Test Button	15 ms	Silver Nickel (AgNi)	Non Latching	7040 VA	35 VDC	440 VAC	48 VDC	0.187 in 4.7 mm	Plug In Quick Connect	10 mA	70 °C	-40 C	5 ms	SPDT (1 Form C)
Finder Relays, Inc. 46.61.9.125.0040	32 kOhms	16 A	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	25 VDC	Socketable	General Purpose	Mechanical Indicator Test Button	15 ms	Silver Nickel (AgNi)	Non Latching	7040 VA	91.2 VDC	440 VAC	125 VDC	0.187 in 4.7 mm	Plug In Quick Connect	3.9 mA	70 °C	-40 C	5 ms	SPDT (1 Form C)
Finder Relays, Inc. 46.61.9.024.4000T	1.2 kOhms	16 A	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4.8 VDC	Socketable	General Purpose		15 ms	Silver Tin Oxide (AgSnO)	Non Latching	7040 VA	17.5 VDC	440 VAC	24 VDC	0.187 in 4.7 mm	Plug In Quick Connect	0.02 A	70 °C	-40 C	5 ms	SPDT (1 Form C)

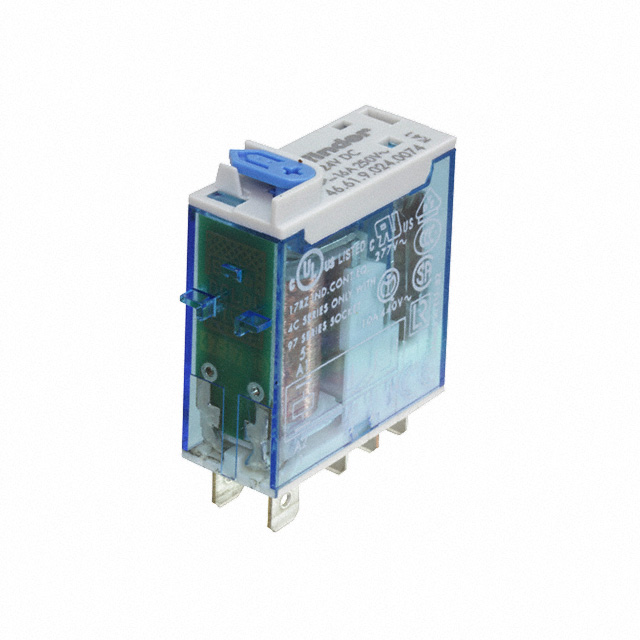

Finder Relays, Inc. 46.61.9.024.0074	1.2 kOhms	16 A	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	2.4 VDC	Socketable	General Purpose		15 ms	Silver Nickel (AgNi)	Non Latching		17.5 VDC	400 VAC	24 VDC	0.187 in 4.7 mm	Plug In Quick Connect	0.02 A	70 °C	-40 C	5 ms	SPDT (1 Form C)	6400 VA
Finder Relays, Inc. 46.61.9.024.0020	1.2 kOhms	16 A	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4.8 VDC	Socketable	General Purpose	Mechanical Indicator	15 ms	Silver Nickel (AgNi)	Non Latching	7040 VA	17.5 VDC	440 VAC	24 VDC	0.187 in 4.7 mm	Plug In Quick Connect	0.02 A	70 °C	-40 C	5 ms	SPDT (1 Form C)

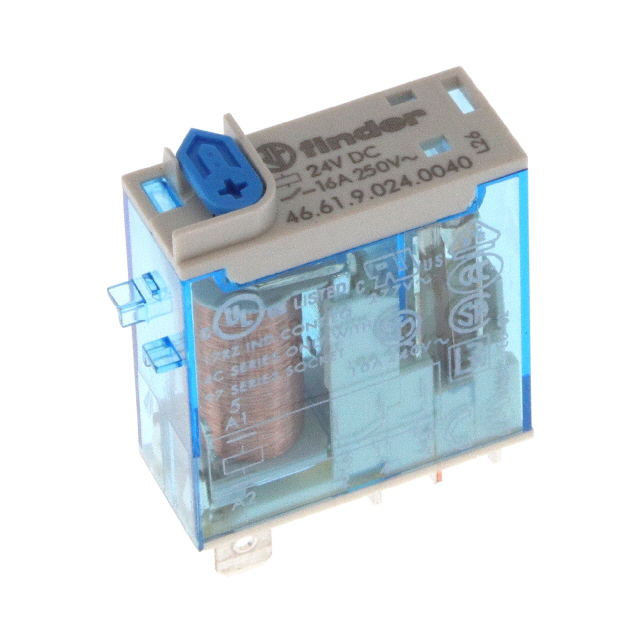

Finder Relays, Inc. 46.61.9.024.0040	1.2 kOhms	16 A	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4.8 VDC	Socketable	General Purpose	Mechanical Indicator Test Button	15 ms	Silver Nickel (AgNi)	Non Latching	7040 VA	17.5 VDC	440 VAC	24 VDC	0.187 in 4.7 mm	Plug In Quick Connect	0.02 A	70 °C	-40 C	5 ms	SPDT (1 Form C)
Finder Relays, Inc. 46.61.9.024.5040	1.2 kOhms	16 A	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4.8 VDC	Socketable	General Purpose	Mechanical Indicator Test Button	15 ms	Gold (Au) Silver Nickel (AgNi)	Non Latching	7040 VA	17.5 VDC	440 VAC	24 VDC	0.187 in 4.7 mm	Plug In Quick Connect	0.02 A	70 °C	-40 C	5 ms	SPDT (1 Form C)

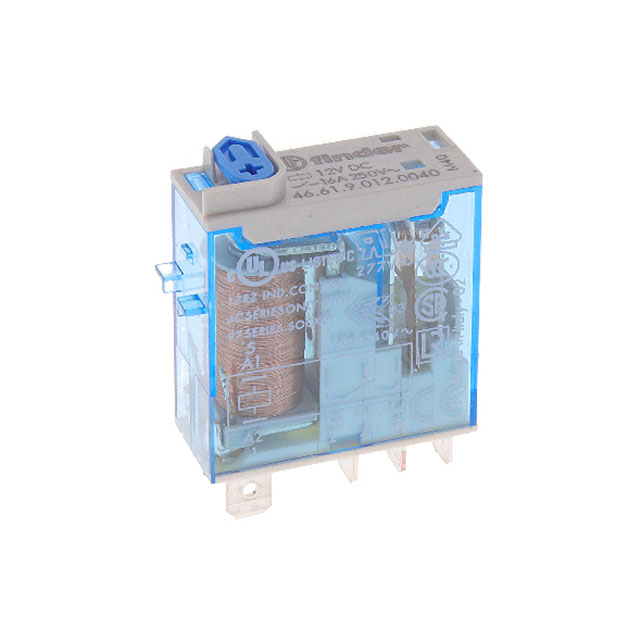

Finder Relays, Inc. 46.61.9.012.0040	300 Ohms	16 A	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	2.4 VDC	Socketable	General Purpose	Mechanical Indicator Test Button	15 ms	Silver Nickel (AgNi)	Non Latching	7040 VA	8.8 VDC	440 VAC	12 VDC	0.187 in 4.7 mm	Plug In Quick Connect	40 mA	70 °C	-40 C	5 ms	SPDT (1 Form C)
Finder Relays, Inc. 46.61.9.024.5074	1.2 kOhms	16 A	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4.8 VDC	Socketable	General Purpose		15 ms	Gold (Au) Silver Nickel (AgNi)	Non Latching	7040 VA	17.5 VDC	440 VAC	24 VDC	0.187 in 4.7 mm	Plug In Quick Connect	0.02 A	70 °C	-40 C	5 ms	SPDT (1 Form C)
Finder Relays, Inc. 46.61.9.024.4040	1.2 kOhms	16 A	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4.8 VDC	Socketable	General Purpose	Mechanical Indicator Test Button	15 ms	Silver Tin Oxide (AgSnO)	Non Latching	7040 VA	17.5 VDC	440 VAC	24 VDC	0.187 in 4.7 mm	Plug In Quick Connect	0.02 A	70 °C	-40 C	5 ms	SPDT (1 Form C)
