6800-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

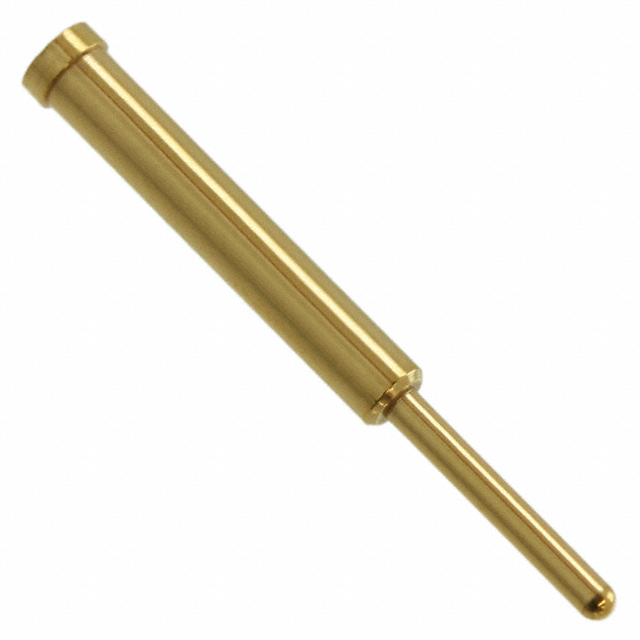

CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Tail Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Termination | Tail Diameter [diameter] | Tail Diameter [diameter] | Mounting Hole Diameter | Mounting Hole Diameter | Length - Overall [x] | Length - Overall [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | Standard Tail | 0.25 Ám | 10 Áin | Beryllium Copper | Solder | 1.02 mm | 0.04 " | 2.03 mm | 0.08 in | 20.32 mm | 0.8 " | 0.09 in | 2.29 mm | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 1.63 mm | 0.064 in |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | Standard Tail | 0.25 Ám | 10 Áin | Beryllium Copper | Solder | 1.02 mm | 0.04 " | 2.03 mm | 0.08 in | 20.32 mm | 0.8 " | 0.09 in | 2.29 mm | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 1.63 mm | 0.064 in |
