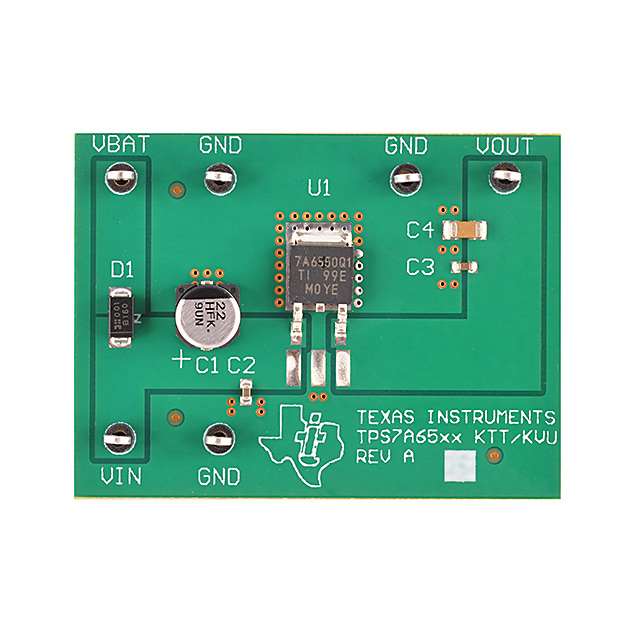

TPS7A6550 Series
Manufacturer: Texas Instruments
Beta
⌘K
LDO REGULATOR POS 5V 0.3A AUTOMOTIVE AEC-Q100 3-PIN(2+TAB) TO-252 TUBE
| Part | PSRR [Min] | PSRR [Max] | Protection Features | Current - Output | Supplier Device Package | Output Configuration | Grade | Qualification | Mounting Type | Package / Case | Number of Regulators | Voltage Dropout (Max) [Max] | Control Features | Voltage - Output (Min/Fixed) | Operating Temperature [Min] | Operating Temperature [Max] | Supplied Contents | Board Type | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Channels per IC | Contents | Regulator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 30 dB | 60 dB | Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO) Watchdog | 300 mA | TO-252-3 | Positive | Automotive | AEC-Q100 | Surface Mount | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 1 | 0.5 V | Enable Reset | 5 V | -40 C | 150 °C | |||||||||
 Texas Instruments | 300 mA 300 mA | Board(s) | Fully Populated | 5 V | 40 V | 4 V | TPS7A6550 | 1 | Board(s) | Positive Fixed |
