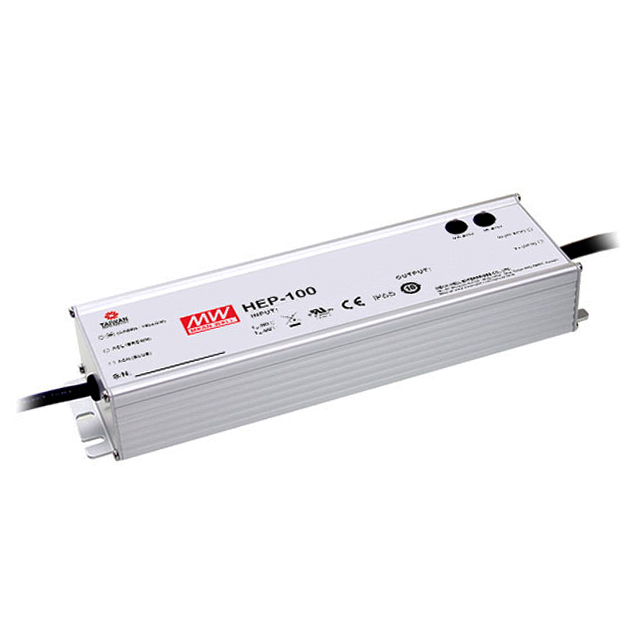

HEP-100 Series

Catalog

AC/DC CONVERTER 15V 100W

Part	Type	Features	Number of Outputs	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Efficiency	Power (Watts)	Voltage - Output 1	Approval Agency	Current - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1 [custom]
MEAN WELL USA Inc. HEP-100-15A	Enclosed	Adjustable Output IP65 PFC Universal Input	1	ITE (Commercial)	Chassis Mount	70 °C	-55 °C	90 VAC 127 VDC	305 VAC 431 VDC	3750 VDC	92 %	100 W	15 V	CB CE cURus	6.67 A	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm
MEAN WELL USA Inc. HEP-100-12A	Enclosed	Adjustable Output IP65 PFC Universal Input	1	ITE (Commercial)	Chassis Mount	70 °C	-55 °C	90 VAC 127 VDC	305 VAC 431 VDC	3750 VDC	92 %	100 W	12 V	CB CE cURus	8.34 A	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm
MEAN WELL USA Inc. HEP-100-36A	Enclosed	Adjustable Output IP65 PFC Universal Input	1	ITE (Commercial)	Chassis Mount	70 °C	-55 °C	90 VAC 127 VDC	305 VAC 431 VDC	3750 VDC	93 %	95 W		CB CE cURus	2.65 A	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	36 V
MEAN WELL USA Inc. HEP-100-54A	Enclosed	Adjustable Output IP65 PFC Universal Input	1	ITE (Commercial)	Chassis Mount	70 °C	-55 °C	90 VAC 127 VDC	305 VAC 431 VDC	3750 VDC	93 %	96 W	54 V	CB CE cURus	1.77 A	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm
MEAN WELL USA Inc. HEP-100-48A	Enclosed	Adjustable Output IP65 PFC Universal Input	1	ITE (Commercial)	Chassis Mount	70 °C	-55 °C	90 VAC 127 VDC	305 VAC 431 VDC	3750 VDC	93 %	96 W	48 V	CB CE cURus	2 A	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm
