PHH223M Series

Manufacturer: KEMET

Catalog

HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, 800 ΜF, ± 20%, 63 V, RADIAL, 0.0042 OHM

Part	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Lifetime @ Temp.	Applications	Lead Spacing	Lead Spacing	Ratings	Package / Case	Capacitance	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Type	Ripple Current @ Low Frequency	Features	Height - Seated (Max)
KEMET PHH223MLL3800ME4	85 mOhm	18.2 mm	0.717 "	20 %	125 °C	-40 C	Through Hole	3000 Hrs	Automotive	0.6 in	15.24 mm	AEC-Q200	Can Radial	800 µF	42.5 A	28.7 mm	1.13 in	63 V	Hybrid	8.5 A	High Vibration
KEMET PHH223MKP3780ME4	87 mOhm	16.2 mm	0.638 in	20 %	125 °C	-40 C	Through Hole	3000 Hrs	Automotive	0.6 in	15.24 mm	AEC-Q200	Can Radial	780 µF	38.9 A		1.445 in	63 V	Hybrid	7.78 A	High Vibration	36.7 mm

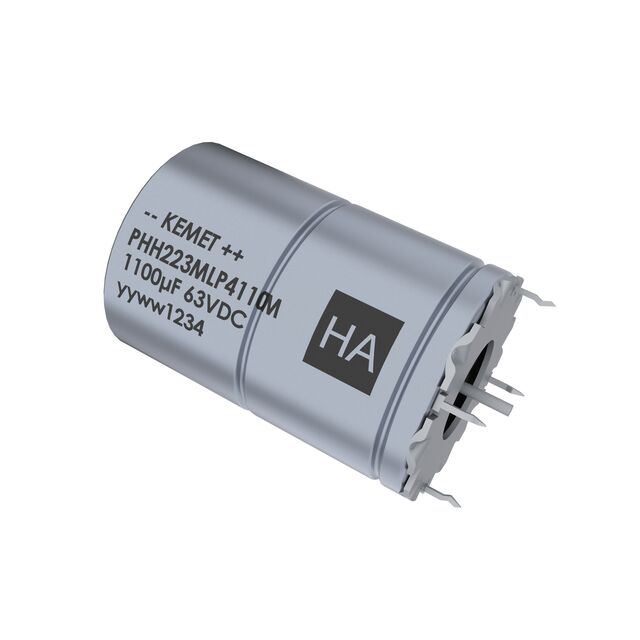

KEMET PHH223MKL3540ME4	124 mOhm	16.2 mm	0.638 in	20 %	125 °C	-40 C	Through Hole	3000 Hrs	Automotive	0.6 in	15.24 mm	AEC-Q200	Can Radial	540 µF	38 A	28.7 mm	1.13 in	63 V	Hybrid	7.6 A	High Vibration
KEMET PHH223MLP4110ME4	62 mOhm	18.2 mm	0.717 "	20 %	125 °C	-40 C	Through Hole	3000 Hrs	Automotive	0.6 in	15.24 mm	AEC-Q200	Can Radial	1100 µF	44 A		1.445 in	63 V	Hybrid	8.8 A	High Vibration	36.7 mm
