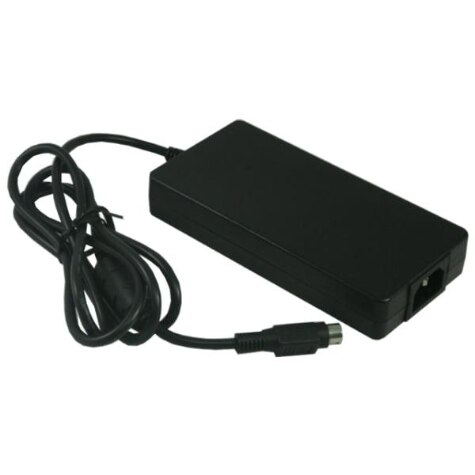

PUP150N3 Series
Desktop AC Adapters 150W/54V/2.77A ITE AC/DC DT C14 4P MINI DIN
Manufacturer: TT Electronics/BI
Catalog
Desktop AC Adapters 150W/54V/2.77A ITE AC/DC DT C14 4P MINI DIN
Beta
⌘K
Desktop AC Adapters 150W/54V/2.77A ITE AC/DC DT C14 4P MINI DIN
Desktop AC Adapters 150W/54V/2.77A ITE AC/DC DT C14 4P MINI DIN
Desktop AC Adapters 150W/54V/2.77A ITE AC/DC DT C14 4P MINI DIN
| Part | Input Connector | Efficiency | Cord Length | Cord Length | Form | Applications | Output Connector | Voltage - Input [Max] | Voltage - Input [Min] | No Load Power Consumption | Standard Number | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Power (Watts) | Voltage - Output | Operating Temperature [Max] | Operating Temperature [Min] | Input Type | Approval Agency | Region Utilized | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | IEC 320-C14 | CoC Tier 2 Level VI | 70.9 " | 1.8 m | Desktop (Class I) | ITE (Commercial) | Power DIN 4 Pin | 264 VAC | 90 VAC | 150 mW | 62368-1 | 5.96 " | 1 in | 151.4 mm | 2.98 " | 75.7 mm | 25.4 mm | 150 W | 24 V | 40 °C | 0 °C | Cord (Sold Separately) | CE cULus GS TUV | International | 6.25 A |
 TT Electronics/BI | IEC 320-C14 | CoC Tier 2 Level VI | 70.9 " | 1.8 m | Desktop (Class I) | ITE (Commercial) | Power DIN 4 Pin | 264 VAC | 90 VAC | 150 mW | 62368-1 | 5.96 " | 1 in | 151.4 mm | 2.98 " | 75.7 mm | 25.4 mm | 150 W | 12 V | 40 °C | 0 °C | Cord (Sold Separately) | CE cULus GS TUV | International | 12.5 A |
