74ACT11032 Series

Catalog

4-CH, 2-INPUT, 4.5-V TO 5.5-V 24-MA DRIVE STRENGTH OR GATE WITH TTL-COMPATIBLE INPUTS

Part	Current - Quiescent (Max) [Max]	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Mounting Type	Package / Case [x]	Package / Case	Package / Case [x]	Logic Type	Max Propagation Delay @ V, Max CL	Number of Inputs	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Input Logic Level - Low	Package / Case
Texas Instruments 74ACT11032N	4 µA	4	85 °C	-40 C	5.5 V	4.5 V	16-PDIP	Through Hole	0.3 in	16-DIP	7.62 mm	OR Gate	8.1 ns	2	24 mA	24 mA	0.8 V
Texas Instruments 74ACT11032NG4	4 µA	4	85 °C	-40 C	5.5 V	4.5 V	16-PDIP	Through Hole	0.3 in	16-DIP	7.62 mm	OR Gate	8.1 ns	2	24 mA	24 mA	0.8 V
Texas Instruments 74ACT11032DR	4 µA	4	85 °C	-40 C	5.5 V	4.5 V	16-SOIC	Surface Mount		16-SOIC		OR Gate	8.1 ns	2	24 mA	24 mA	0.8 V	0.154 in 3.9 mm

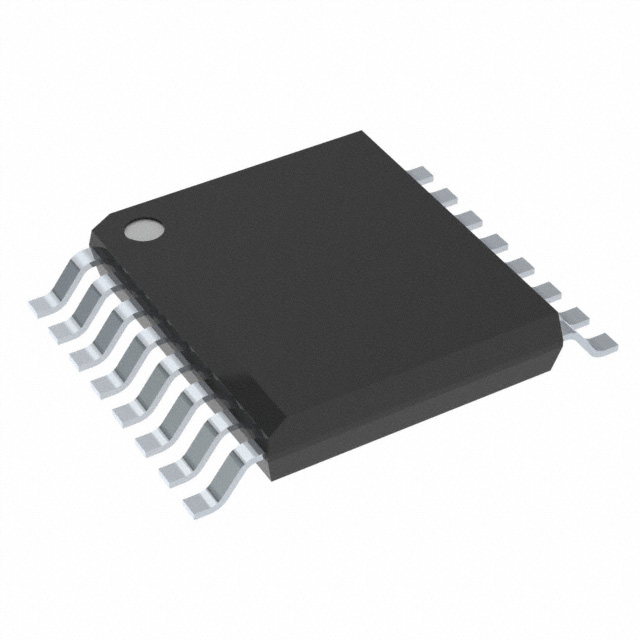

Texas Instruments 74ACT11032DBRE4	4 µA	4	85 °C	-40 C	5.5 V	4.5 V	16-SSOP	Surface Mount		16-SSOP		OR Gate	8.1 ns	2	24 mA	24 mA	0.8 V	0.209 in 5.3 mm
Texas Instruments 74ACT11032DBRG4	4 µA	4	85 °C	-40 C	5.5 V	4.5 V	16-SSOP	Surface Mount		16-SSOP		OR Gate	8.1 ns	2	24 mA	24 mA	0.8 V	0.209 in 5.3 mm
Texas Instruments 74ACT11032NE4	4 µA	4	85 °C	-40 C	5.5 V	4.5 V	16-PDIP	Through Hole	0.3 in	16-DIP	7.62 mm	OR Gate	8.1 ns	2	24 mA	24 mA	0.8 V
Texas Instruments 74ACT11032D	4 µA	4	85 °C	-40 C	5.5 V	4.5 V	16-SOIC	Surface Mount		16-SOIC		OR Gate	8.1 ns	2	24 mA	24 mA	0.8 V	0.154 in 3.9 mm
Texas Instruments 74ACT11032DRG4	4 µA	4	85 °C	-40 C	5.5 V	4.5 V	16-SOIC	Surface Mount		16-SOIC		OR Gate	8.1 ns	2	24 mA	24 mA	0.8 V	0.154 in 3.9 mm
