VEMT2023 Series

Catalog

PHOTOTRANSISTOR 790 TO 970 NM

Part	Viewing Angle	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Current - Collector (Ic) (Max) [Max]	Current - Dark (Id) (Max) [Max]	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Grade	Package / Case	Wavelength	Mounting Type	Orientation [custom]

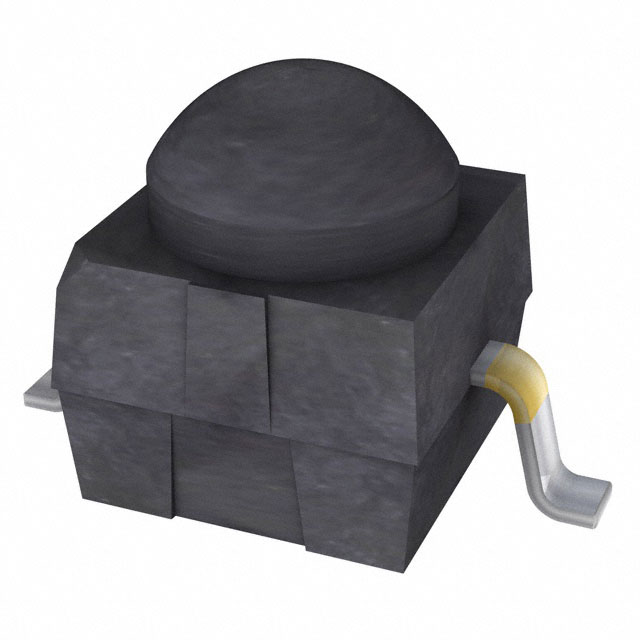

Vishay Semiconductor Opto Division VEMT2023X01	70 °	Top View	-40 C	100 °C	AEC-Q101	50 mA	1 nA	100 mW	20 V	Automotive	2-SMD Gull Wing	860 nm	Surface Mount

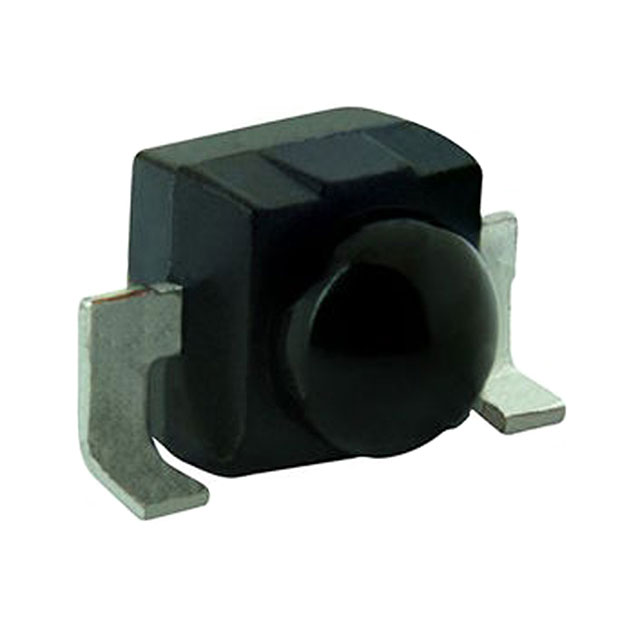

Vishay Semiconductor Opto Division VEMT2023SLX01	70 °		-40 C	100 °C	AEC-Q101	50 mA	1 nA	100 mW	20 V	Automotive	2-SMD Side View	860 nm	Right Angle Surface Mount	Side View
