HLMP03 Series

Catalog

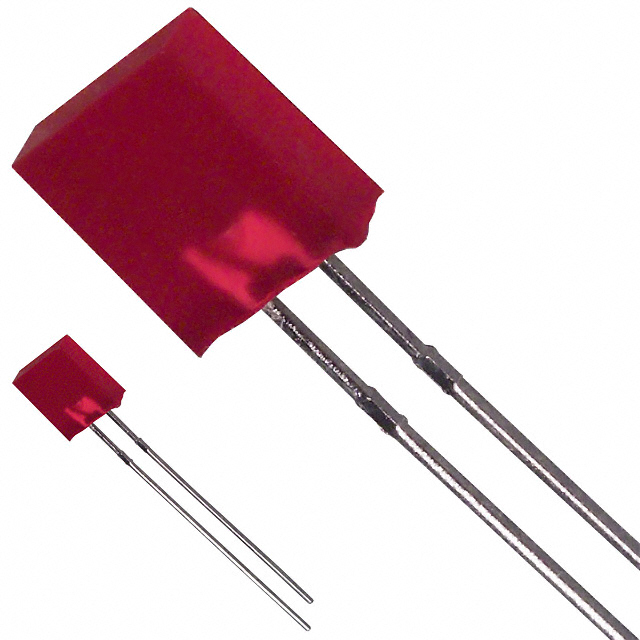

LED RED DIFFUSED RECTANGULAR T/H

Part	Wavelength - Peak	Lens Size [y]	Lens Size [x]	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Configuration	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Height (Max) [Max] [z]	Millicandela Rating	Package / Case	Lens Style	Lens Color	Mounting Type	Color	Lens Transparency
ON Semiconductor HLMP0301	635 nm	2.42 mm	7.24 mm	20 mA	7.24 mm	2.42 mm	100 °	Standard	2.1 V	Rectangular	8 mm	5 mcd	Radial	Rectangle with Flat Top	Red	Through Hole	Red	Diffused
ON Semiconductor HLMP0300	635 nm	2.42 mm	7.24 mm	20 mA	7.24 mm	2.42 mm	100 °	Standard	2.1 V	Rectangular	8 mm	2.5 mcd	Radial	Rectangle with Flat Top	Red	Through Hole	Red	Diffused
