TRIO-PS Series

Catalog

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 60 W, 12 VDC, 5 A

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Features	Approval Agency	Current - Output (Max)	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Voltage - Isolation	Voltage - Output 1	Input Type	Power (Watts)	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]
Phoenix Contact 2866475	1.26 in	5.12 in	115 mm	4.53 "	32 mm	130 mm	1	IP20 Universal Input	cULus cURus UL	5 A	83 %	-25 °C	70 °C	100 VAC	240 VAC	ITE (Commercial)	4000 V	12 V	AC	60 W
Phoenix Contact 2903147	1.18 "	5.12 in	115 mm	4.53 "			1	Adjustable Output Universal Input	cULus cURus EAC		89 %	-25 °C	70 °C	85 VAC	264 VAC	ITE (Commercial)	4000 V	24 V	AC	72 W	3 A	30 mm	130 mm
Phoenix Contact 2866491	2.36 "	5.12 in	152.5 mm	6 "			1	IP20 Universal Input	cULus cURus UL	5 A	89 %	-25 °C	70 °C	100 VAC	240 VAC	ITE (Commercial)	4000 V	48 V	AC	240 Watts		60 mm	130 mm

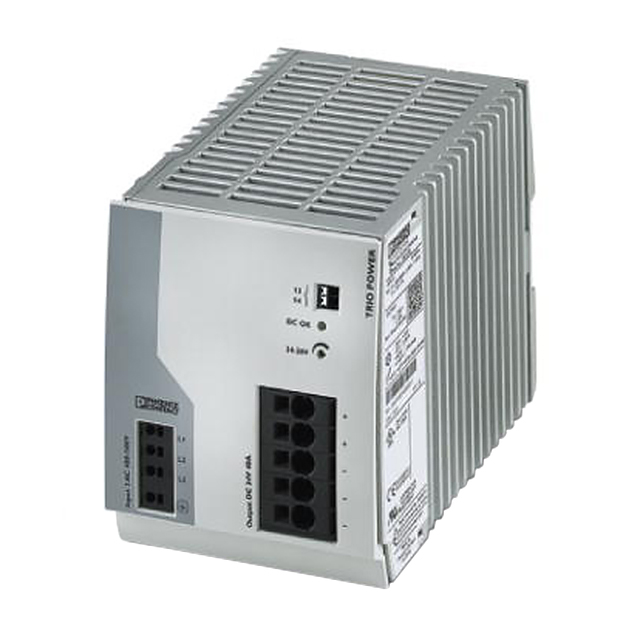

Phoenix Contact 2903156	4.33 "	5.12 in	160 mm	6.3 in			1	Adjustable Output IP20 Universal Input	cUL UL		93.3 %	-25 °C	70 °C	400 VAC	500 VAC	Industrial ITE (Commercial)	3000 V	24 V	AC	960 W	40 A	110 mm	130 mm
Phoenix Contact 2902646	1.57 "	5.12 in	115 mm	4.53 "			1	IP20 Universal Input	cULus cURus		80 %	-25 °C	70 °C	85 VAC	264 VAC	ITE (Commercial)	4000 V	5 V	AC	50 W	10 A	40 mm	130 mm
