55 Series

Catalog

CURRENT TRANSFORMERS 3.8MH 1:1:50 TURNS SM CURR SENSE TXFR

Part	Weight [custom]	Weight [custom]	DC Resistance (DCR) [custom]	DC Resistance (DCR) [custom]	Frequency Range [Min]	Frequency Range [Max]	Type	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Turns Ratio - Primary:Secondary [Min]	Turns Ratio - Primary:Secondary [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Turns Ratio - Primary:Secondary [y]	Turns Ratio - Primary:Secondary [x]	Turns Ratio - Primary:Secondary [custom]	Weight	Weight	Current Rating (Amps)	Size / Dimension	Turns Ratio - Primary:Secondary

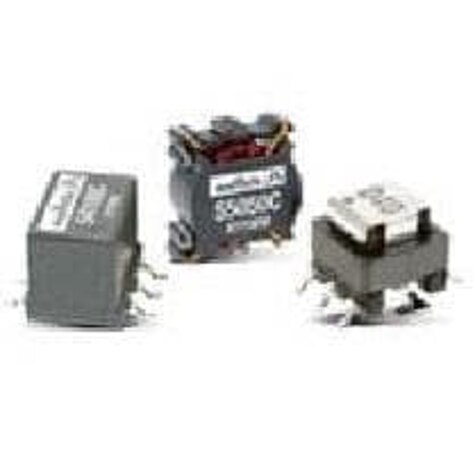

Murata Electronics 55050C	1.71 g	0.06 oz	2.3 mOhm	350 mOhm	50 kHz	500 kHz	Invasive	3.8 mH	7.1 mm	0.28 in	Surface Mount	1 CT	1 50	14.6 mm	12.6 mm	0.496 in	0.575 in

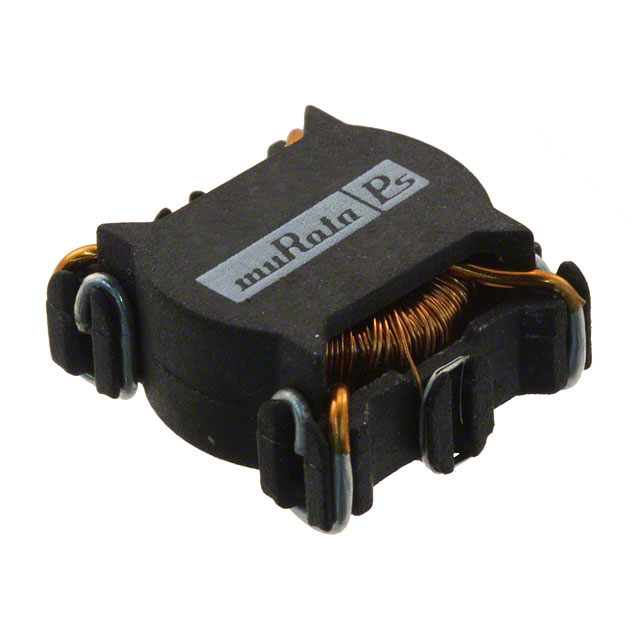

Murata Electronics 55200C	1.71 g	0.06 oz	2.3 mOhm	3.6 Ohm	50 kHz	500 kHz	Invasive	60 mH	7.1 mm	0.28 in	Surface Mount			14.6 mm	12.6 mm	0.496 in	0.575 in	1	1	200
Murata Electronics 55100C-R			2.3 mOhm	850 mOhm	50 kHz	500 kHz	Invasive	14.8 mH	7.1 mm	0.28 in	Surface Mount										0.004 lb	1.7 g	15 A	0.496 in 0.575 " 12.6 mm 14.6 mm	1 100

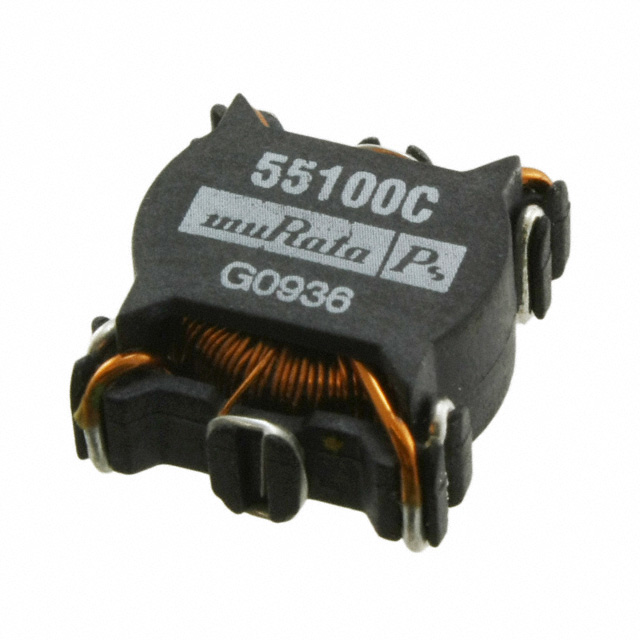

Murata Electronics 55100C	1.71 g	0.06 oz	2.3 mOhm	850 mOhm	50 kHz	500 kHz	Invasive	14.8 mH	7.1 mm	0.28 in	Surface Mount			14.6 mm	12.6 mm	0.496 in	0.575 in								1 100
Murata Electronics 55050C-R			2.3 mOhm	350 mOhm	50 kHz	500 kHz	Invasive	3.8 mH	7.1 mm	0.28 in	Surface Mount	1 CT	1 50								0.004 lb	1.7 g	15 A	0.496 in 0.575 " 12.6 mm 14.6 mm
