SFW21R Series

Catalog

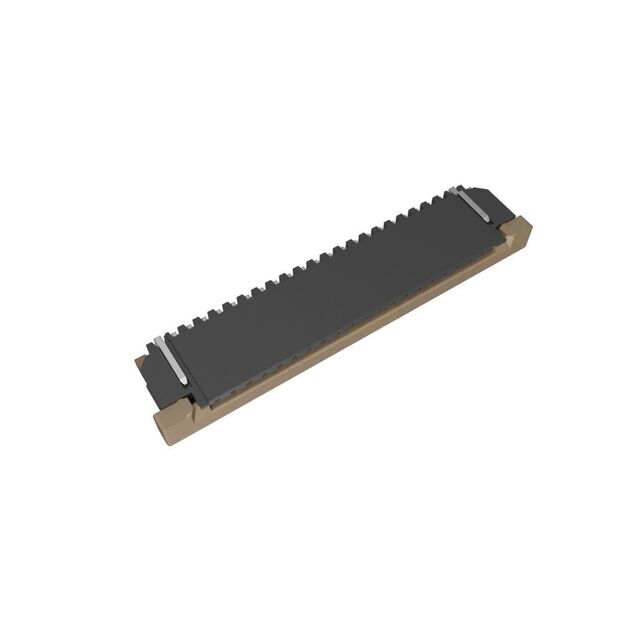

CONN FFC FPC BOTTOM 21POS 1MM RA

Part	Housing Color	Actuator Color	Cable End Type	Contact Finish	Material Flammability Rating	Locking Feature	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Connector/Contact Type	Flat Flex Type	Actuator Material	Housing Material	Termination	Pitch	Pitch	Number of Positions	Contact Material	Mounting Type	Height Above Board [z]	Height Above Board [z]	Mating Cycles	Voltage Rating	Features	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness
Amphenol ICC (FCI) SFW21R-1STE1	Brown	Black	Straight Tapered	Tin Alloy	UL94 V-0	Slide Lock	0.3 mm	0.33 mm	Contacts Bottom	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Polyphenylene Sulfide (PPS) Glass Filled	Solder	1 mm	0.039 in	21	Phosphor Bronze	Right Angle Surface Mount	0.106 in	2.7 mm
Amphenol ICC (FCI) SFW21R-4STE1LF	Black	Brown	Notched Tapered	Tin	UL94 V-0	Slide Lock	0.3 mm	0.33 mm	Contacts Top	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Polyphenylene Sulfide (PPS) Glass Filled	Solder	1 mm	0.039 in	21	Phosphor Bronze	Right Angle Surface Mount	0.106 in	2.7 mm	20	100 V	Solder Retention Zero Insertion Force (ZIF)	-55 C	105 ░C
Amphenol ICC (FCI) SFW21R-6STE1			Tapered			Slide Lock			Contacts Top	CIC		Polyphenylene Sulfide (PPS) Glass Filled	Solder	1 mm	0.039 in	21		Right Angle Surface Mount	0.106 in	2.7 mm						0.3 mm
Amphenol ICC (FCI) SFW21R-1STAE1LF	Brown	Brown	Tapered	Gold	UL94 V-0	Slide Lock			Contacts Bottom	FPC	Polyphenylene Sulfide (PPS) Glass Filled	Polyphenylene Sulfide (PPS) Glass Filled	Solder	1 mm	0.039 in	21	Phosphor Bronze	Right Angle Surface Mount	0.106 in	2.7 mm	20	100 V		-55 C	105 ░C	0.33 mm
Amphenol ICC (FCI) SFW21R-1STE1LF	Brown	Brown	Notched	Tin	UL94 V-0	Slide Lock	0.3 mm	0.33 mm	Contacts Bottom	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Polyphenylene Sulfide (PPS) Glass Filled	Solder	1 mm	0.039 in	21	Phosphor Bronze	Right Angle Surface Mount	0.106 in	2.7 mm	20	100 V		-55 C	105 ░C
Amphenol ICC (FCI) SFW21R-4STE5LF	Black	Black	Straight Tapered	Tin	UL94 V-0	Slide Lock	0.3 mm	0.33 mm	Contacts Top	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Polyphenylene Sulfide (PPS) Glass Filled	Solder	1 mm	0.039 in	21	Phosphor Bronze	Right Angle Surface Mount	0.106 in	2.7 mm	20	100 V	Solder Retention Zero Insertion Force (ZIF)	-55 C	105 ░C
