S34B-PHD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

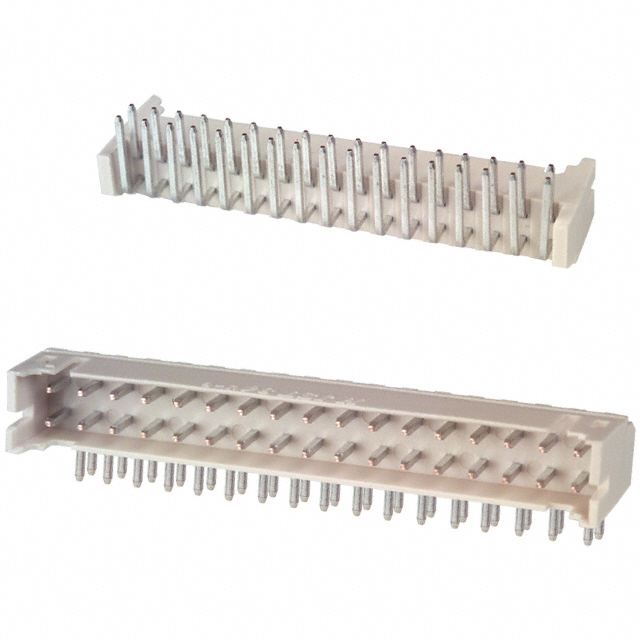

CONN HEADER R/A 34POS 2MM
| Part | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Insulation Color | Style | Contact Length - Mating | Contact Length - Mating | Shrouding | Fastening Type | Contact Shape | Voltage Rating | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Contact Type | Connector Type | Insulation Material | Number of Positions Loaded | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Number of Positions [custom] | Mounting Type | Contact Material | Termination | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 0.197 " | 5 mm | 85 °C | -25 °C | 3 A | Natural | Board to Cable/Wire | 2.9 mm | 0.114 in | Shrouded - 4 Wall | Detent Lock | Square | 250 V | Tin | 2 mm | 0.079 in | 0.079 " | 2 mm | Male Pin | Header | Glass Filled Nylon Polyamide (PA) | All | UL94 V-0 | 0.118 in | 3 mm | 34 | Right Angle Through Hole | Copper Alloy | Solder | 2 |
