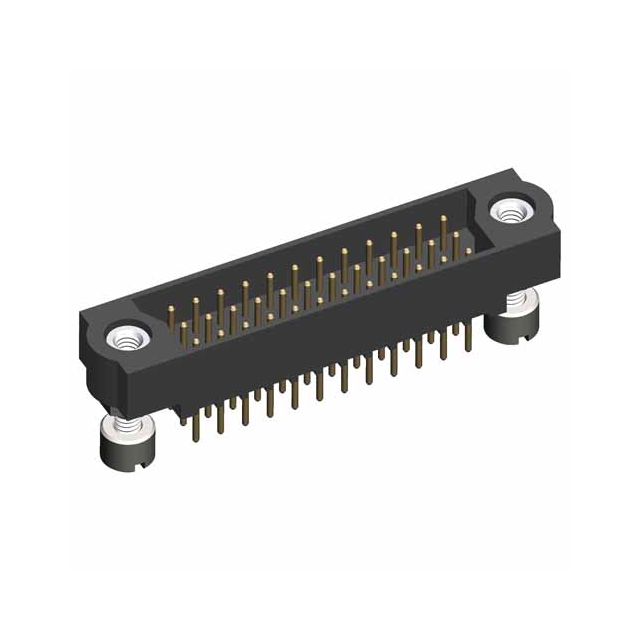

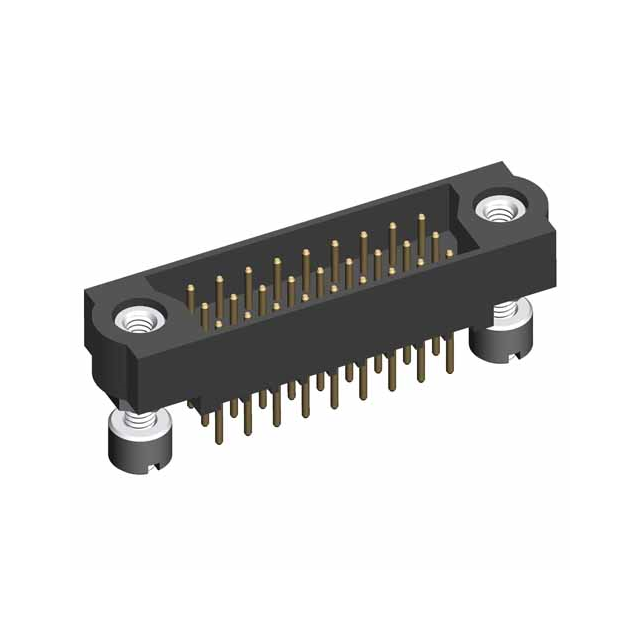

M83-LMT2M Series
Manufacturer: Harwin Inc.
Beta
⌘K
12 X 3-ROW MALE VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mated Stacking Heights | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Contact Material | Mounting Type | Current Rating (Amps) | Contact Finish - Post | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Shrouding | Termination | Style | Fastening Type | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Contact Length - Post | Contact Length - Post | Number of Rows [custom] | Contact Finish - Mating | Features | Insulation Color | Number of Positions Loaded | Number of Positions | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Voltage Rating | Material Flammability Rating | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 29.5 µin | 0.75 µm | 10.65 mm | 0.079 " | 2 mm | 0.238 " | 6.05 mm | Phosphor Bronze | Through Hole | 2.2 A | Gold | Male Pin | 2 mm | 0.079 in | Shrouded - 4 Wall | Solder | Board to Board Cable | Threaded | Polyphenylene Sulfide (PPS) Glass Filled | -55 C | 125 °C | Circular | 4.4 mm | 0.173 in | 3 | Gold | Keying Slot Mating Flange Mounting Flange Mounting Hardware | Black | All | 36 | 29.5 µin | 0.75 µm | 120 VAC | UL94 V-0 | Header |
Harwin Inc. | 29.5 µin | 0.75 µm | 10.65 mm | 0.079 " | 2 mm | 0.238 " | 6.05 mm | Phosphor Bronze | Through Hole | 2.2 A | Gold | Male Pin | 2 mm | 0.079 in | Shrouded - 4 Wall | Solder | Board to Board Cable | Threaded | Polyphenylene Sulfide (PPS) Glass Filled | -55 C | 125 °C | Circular | 4.4 mm | 0.173 in | 3 | Gold | Keying Slot Mating Flange Mounting Flange Mounting Hardware | Black | All | 18 | 29.5 µin | 0.75 µm | 120 VAC | UL94 V-0 | Header |
 Harwin Inc. | 29.5 µin | 0.75 µm | 10.65 mm | 0.079 " | 2 mm | 0.238 " | 6.05 mm | Phosphor Bronze | Through Hole | 2.2 A | Gold | Male Pin | 2 mm | 0.079 in | Shrouded - 4 Wall | Solder | Board to Board Cable | Threaded | Polyphenylene Sulfide (PPS) Glass Filled | -55 C | 125 °C | Circular | 4.4 mm | 0.173 in | 3 | Gold | Mating Flange Mounting Flange Mounting Hardware | Black | All | 60 | 29.5 µin | 0.75 µm | 800 VAC | UL94 V-0 | Header |
