TL58V Series
Manufacturer: E-Switch
Beta
⌘K

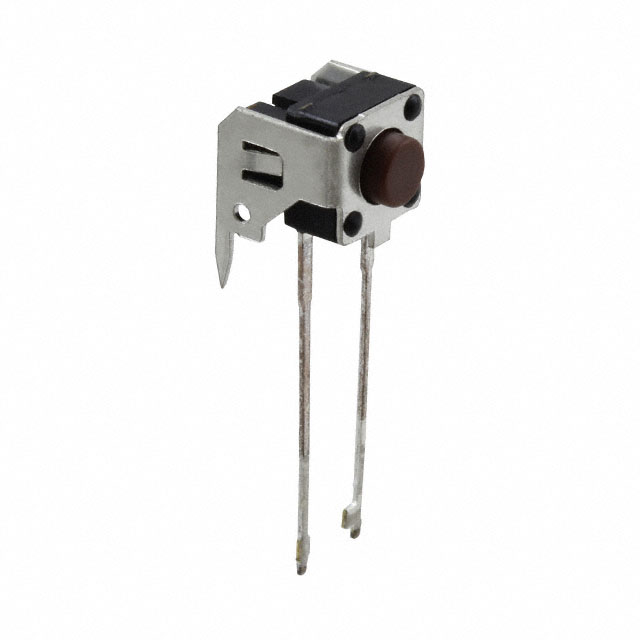

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; THT; NONE; 1N; TL58
| Part | Switch Travel | Mechanical Life | Actuator Material | Contact Rating @ Voltage | Actuator Length, Right Angle [x] | Actuator Orientation | Mounting Type | Circuit | Switch Function | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Illumination | Operating Force | Actuator Type | Outline [x] | Outline [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.25 mm | 100000 Cycles | Polybutylene Terephthalate (PBT) | 0.05 A 12 VDC | 3.85 mm | Side Actuated | Right Angle Through Hole | SPST-NO | Off-Mom | PC Pin | -20 ░C | 70 °C | Non-Illuminated | 100 gf | Standard | 7.4 mm | 6.65 mm |
 E-Switch | 0.25 mm | 100000 Cycles | Polybutylene Terephthalate (PBT) | 0.05 A 12 VDC | 3.85 mm | Side Actuated | Right Angle Through Hole | SPST-NO | Off-Mom | PC Pin | -20 ░C | 70 °C | Non-Illuminated | 160 gf | Standard | 7.4 mm | 6.65 mm |
