202K185 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

HEATSHRINK BOOT SZ85 BLACK

Part	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Large Recovered Length	Large Recovered Length	Features	Type	Shell Size - Insert [custom]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Color	Small Recovered Length [x]	Small Recovered Length	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Material	Small Recovered Length	Total Length Recovered	Total Length Recovered

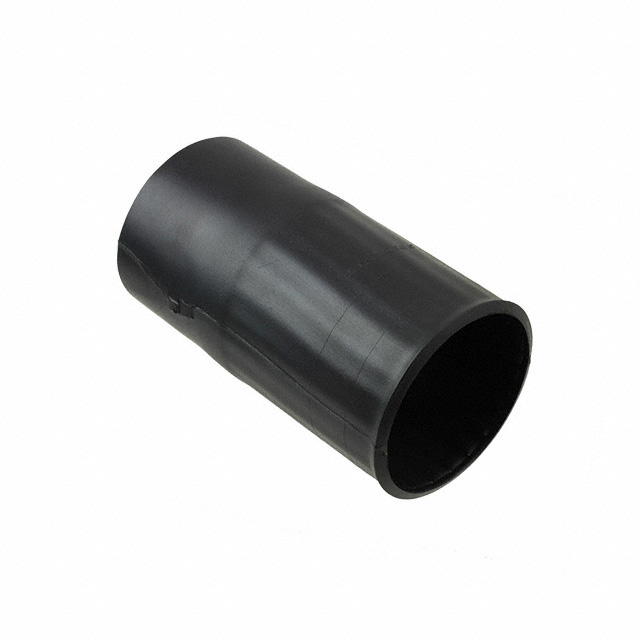

TE Connectivity Aerospace, Defense and Marine 202K185-25L-0	66.04 mm	2.6 in	89.92 mm	3.54 "	Fluid Resistant Lip	Boot	85	44.5 mm	1.752 in	Black	2.028 in	51.51 mm	2.6 in	66.04 mm	16.79 mm	0.661 in	Elastomer Semi-Rigid
TE Connectivity Aerospace, Defense and Marine 202K185-25/225-CS-1858-0	66.04 mm	2.6 in	89.92 mm	3.54 "	Adhesive Coating Eyelet and Clip Fluid Resistant Lip	Boot	85	44.5 mm	1.752 in	Black		70.61 mm	2.6 in	66.04 mm	16.79 mm	0.661 in	Elastomer Semi-Rigid	2.78 in
TE Connectivity Aerospace, Defense and Marine 202K185-25-02/225-CS-1858	66.04 mm	2.6 in	50.04 mm	1.97 in	Adhesive Coating Eyelet Clip Fluid Resistant Lip	Boot	85	44.5 mm	1.752 in		2.028 in	51.51 mm	2.6 in	66.04 mm	16.79 mm	0.661 in	Elastomer Semi-Rigid		5.12 in	130.05 mm
TE Connectivity Aerospace, Defense and Marine 202K185-25-02/225-CS6939	66.04 mm	2.6 in	50.04 mm	1.97 in	Adhesive Coating Fluid Resistant Lip	Boot	85	44.5 mm	1.752 in		2.028 in	51.51 mm	2.6 in	66.04 mm	16.79 mm	0.661 in	Elastomer Semi-Rigid		5.12 in	130.05 mm
TE Connectivity Aerospace, Defense and Marine 202K185-4/42-0	66.04 mm	2.6 in	89.92 mm	3.54 "	Adhesive Coating Flame Retardant Lip	Boot	85	44.5 mm	1.752 in	Black		70.61 mm	2.6 in	66.04 mm	16.79 mm	0.661 in	Polyolefin (PO) Flexible	2.78 in
TE Connectivity Aerospace, Defense and Marine 202K185-100/86-0	42.01 mm	1.654 in	89.92 mm	3.54 "	Adhesive Coating Lip	Boot	85	44.5 mm	1.752 in	Black	2.76 in	70.1 mm	2.6 in	66.04 mm	16.79 mm	0.661 in	Polyolefin (PO) Semi-Flexible Halogen Free
TE Connectivity Aerospace, Defense and Marine 202K185-25/86-0	66.04 mm	2.6 in	89.92 mm	3.54 "	Adhesive Coating Fluid Resistant Lip	Boot	85	44.5 mm	1.752 in	Black		70.61 mm	2.6 in	66.04 mm	16.79 mm	0.661 in	Elastomer Semi-Rigid	2.78 in
TE Connectivity Aerospace, Defense and Marine 202K185-3-0	66.04 mm	2.6 in	89.92 mm	3.54 "	Flame Retardant Lip	Boot	85	44.5 mm	1.752 in	Black		70.61 mm	2.6 in	66.04 mm	16.79 mm	0.661 in	Polyolefin (PO) Semi-Rigid	2.78 in
