9443-7563 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

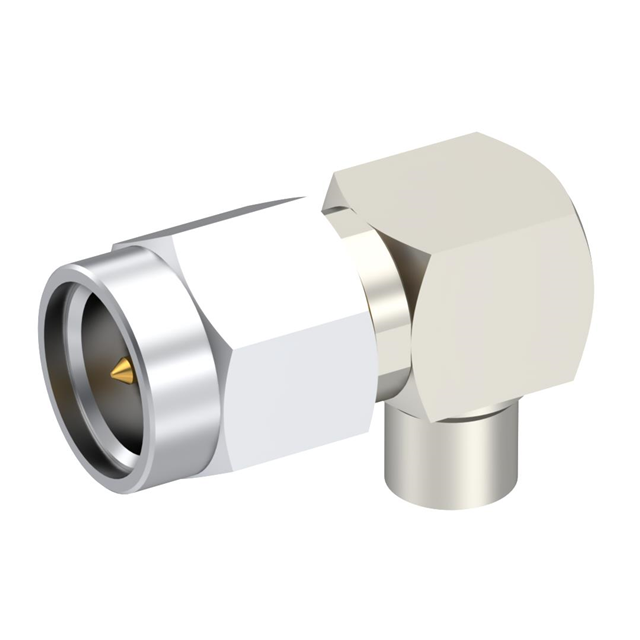

SMA / RIGHT ANGLE PLUG MALE SOLD
| Part | Body Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Plating | Mating Cycles | Dielectric Material | Cable Group | Frequency - Max [Max] | Housing Color | Number of Ports | Impedance | Fastening Type | Contact Termination | Connector Type | Shield Termination | Center Contact Material | Connector Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | Nickel | -65 ░C | 165 °C | 350 VDC | Gold | 500 | Polytetrafluoroethylene (PTFE) | RG-405 (.085" Semi Rigid) | 18 GHz | Silver | 1 | 50 Ohms | Threaded | Solder | Plug Male Pin | Solder | Beryllium Copper | SMA | Free Hanging (In-Line) Right Angle |
 Radiall USA, Inc. | Stainless Steel | Nickel | -65 ░C | 165 °C | 500 V | Gold | 500 | Polytetrafluoroethylene (PTFE) | 18 GHz | Silver | 1 | 50 Ohms | Threaded | Solder | Plug Male Pin | Solder | Beryllium Copper | SMA | Free Hanging (In-Line) Right Angle |
