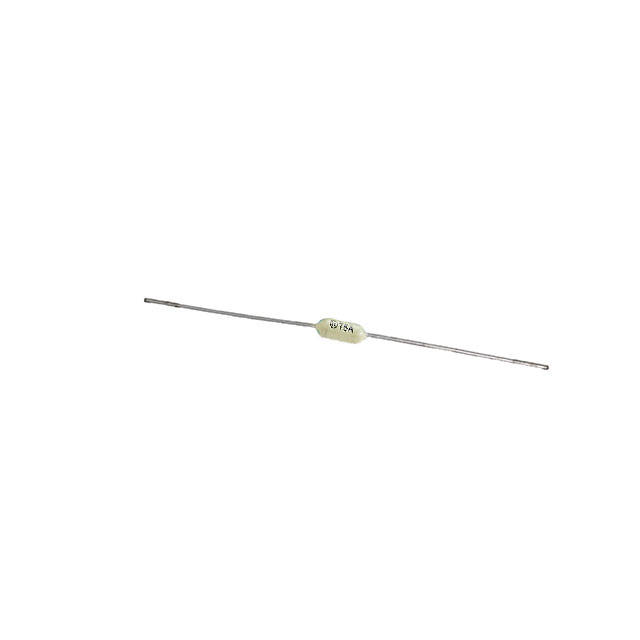

TXG Series

Manufacturer: OptiFuse

Catalog

FUSE BOARD MOUNT 7A 250VAC AXIAL

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Package / Case	Breaking Capacity @ Rated Voltage	Fuse Type	Current Rating (Amps)	Approval Agency	Melting I²t	Voltage Rating - AC	Response Time
OptiFuse TXG-7A	Through Hole	-55 C	125 °C	7.37 mm	2.8 mm	0.29 in	0.11 in	Axial	30 A	Board Mount (Cartridge Style Excluded)	7 A	UL 248	72.91 I²t	250 V	Slow Blow
OptiFuse TXG-630MA	Through Hole	-55 C	125 °C	7.37 mm	2.8 mm	0.29 in	0.11 in	Axial	30 A	Board Mount (Cartridge Style Excluded)	0.63 A	UL 248	0.489	250 V	Slow Blow
OptiFuse TXG-750MA	Through Hole	-55 C	125 °C	7.37 mm	2.8 mm	0.29 in	0.11 in	Axial	30 A	Board Mount (Cartridge Style Excluded)	750 mA	UL 248	0.7074 I²t	250 V	Slow Blow
OptiFuse TXG-1A	Through Hole	-55 C	125 °C	7.37 mm	2.8 mm	0.29 in	0.11 in	Axial	30 A	Board Mount (Cartridge Style Excluded)	1 A	UL 248	1.916 I²t	250 V	Slow Blow
OptiFuse TXG-1.5A	Through Hole	-55 C	125 °C	7.37 mm	2.8 mm	0.29 in	0.11 in	Axial	30 A	Board Mount (Cartridge Style Excluded)	1.5 A	UL 248	3.982	250 V	Slow Blow
OptiFuse TXG-2.5A	Through Hole	-55 C	125 °C	7.37 mm	2.8 mm	0.29 in	0.11 in	Axial	30 A	Board Mount (Cartridge Style Excluded)	2.5 A	UL 248	11.95	250 V	Slow Blow
OptiFuse TXG-375MA	Through Hole	-55 C	125 °C	7.37 mm	2.8 mm	0.29 in	0.11 in	Axial	30 A	Board Mount (Cartridge Style Excluded)	375 mA	UL 248	0.1614 I²t	250 V	Slow Blow
OptiFuse TXG-5A	Through Hole	-55 C	125 °C	7.37 mm	2.8 mm	0.29 in	0.11 in	Axial	30 A	Board Mount (Cartridge Style Excluded)	5 A	UL 248	39.51	250 V	Slow Blow
OptiFuse TXG-4A	Through Hole	-55 C	125 °C	7.37 mm	2.8 mm	0.29 in	0.11 in	Axial	30 A	Board Mount (Cartridge Style Excluded)	4 A	UL 248	31.89	250 V	Slow Blow
OptiFuse TXG-3A	Through Hole	-55 C	125 °C	7.37 mm	2.8 mm	0.29 in	0.11 in	Axial	30 A	Board Mount (Cartridge Style Excluded)	3 A	UL 248	14.11	250 V	Slow Blow
