R12417 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMA / RIGHT ANGLE PLUG CRIMP TYP
| Part | Voltage Rating | Body Finish | Center Contact Plating | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Fastening Type | Connector Type | Cable Group | Shield Termination | Center Contact Material | Housing Color | Frequency - Max [Max] | Contact Termination | Number of Ports | Mounting Type | Connector Style | Includes | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

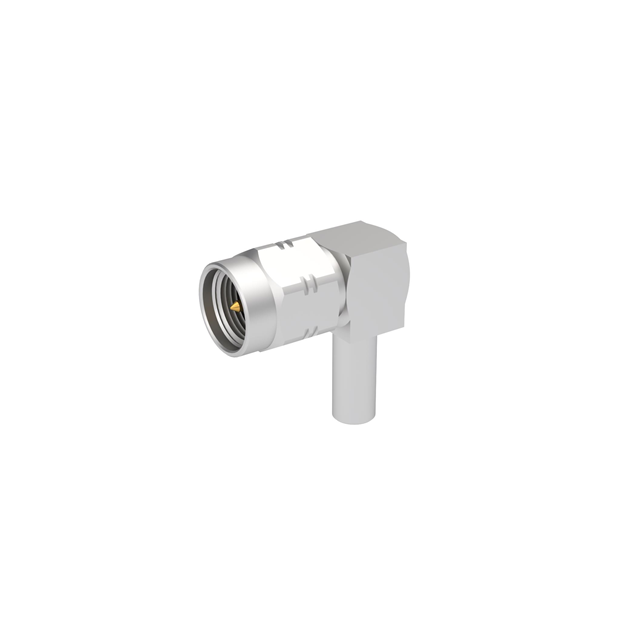

 Radiall USA, Inc. | 250 V | White Bronze | Gold | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | 50 Ohms | Threaded | Plug Male Pin | 316 AEP-100FR RG-174 | Crimp | Brass | Silver | 12.4 GHz | Crimp | 1 | Free Hanging (In-Line) Right Angle | SMA | ||
 Radiall USA, Inc. | 250 V | Gold | Gold | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | 50 Ohms | Threaded | Plug Male Pin | RG-174 | Crimp | Brass | Gold | 12.4 GHz | Crimp | 1 | Free Hanging (In-Line) Right Angle | SMA | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink | 316 |
 Radiall USA, Inc. | 335 V | Gold | Gold | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | 50 Ohms | Threaded | Plug Male Pin | RG-58 | Crimp | Brass | Gold | 12.4 GHz | Crimp | 1 | Free Hanging (In-Line) Right Angle | SMA | 141 | |
 Radiall USA, Inc. | 335 V | Gold | Gold | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | 50 Ohms | Threaded | Plug Male Pin | 223 400 RG-142 | Crimp | Brass | Gold | 12.4 GHz | Crimp | 1 | Free Hanging (In-Line) Right Angle | SMA |
