A7NXB Series

Catalog

CABLE D-SUB - AMN09B/AE09G/X

Part	Type	Contact Finish Thickness	Contact Finish Thickness	1st Connector	Length	Length	2nd Connector	Number of Positions	Contact Finish	Shielding	Color
TE Connectivity AMP Connectors A7NXB-0906G	DB9	30 Áin	0.76 Ám	Male Pins Plug	6 ft	1.83 m	Individual Wire Leads	9	Gold	Unshielded

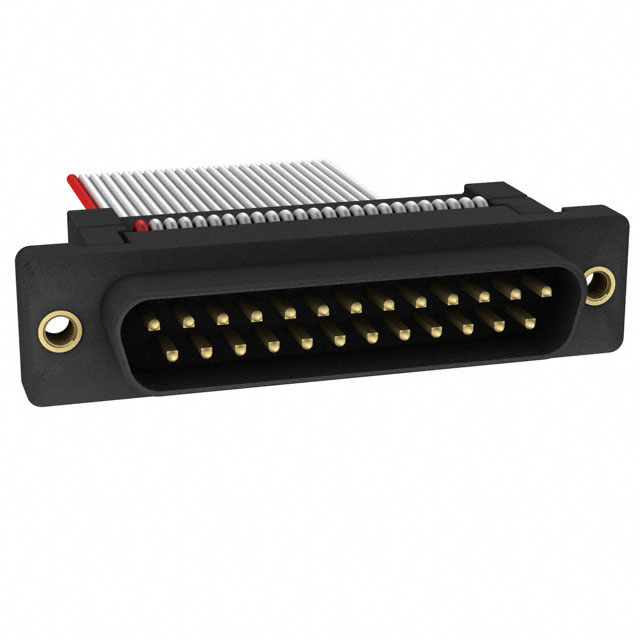

TE Connectivity AMP Connectors A7NXB-2506G	DB25	30 Áin	0.76 Ám	Male Pins Plug	6 ft	1.83 m	Individual Wire Leads	25	Gold	Unshielded
TE Connectivity AMP Connectors A7NXB-0910M	DB9	30 Áin	0.76 Ám	Male Pins Plug	10 ft	3.05 m	Individual Wire Leads	9	Gold	Unshielded	Multiple Ribbon
TE Connectivity AMP Connectors A7NXB-0910G	DB9	30 Áin	0.76 Ám	Male Pins Plug	10 ft	3.05 m	Individual Wire Leads	9	Gold	Unshielded
TE Connectivity AMP Connectors A7NXB-1506G	DB15	30 Áin	0.76 Ám	Male Pins Plug	6 ft	1.83 m	Individual Wire Leads	15	Gold	Unshielded
TE Connectivity AMP Connectors A7NXB-1510G	DB15	30 Áin	0.76 Ám	Male Pins Plug	10 ft	3.05 m	Individual Wire Leads	15	Gold	Unshielded

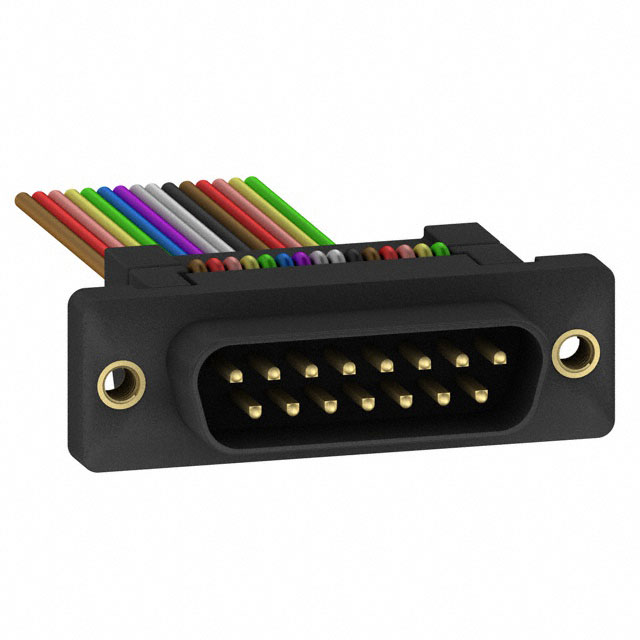

TE Connectivity AMP Connectors A7NXB-1506M	DB15	30 Áin	0.76 Ám	Male Pins Plug	6 ft	1.83 m	Individual Wire Leads	15	Gold	Unshielded	Multiple Ribbon
TE Connectivity AMP Connectors A7NXB-2510G	DB25	30 Áin	0.76 Ám	Male Pins Plug	10 ft	3.05 m	Individual Wire Leads	25	Gold	Unshielded

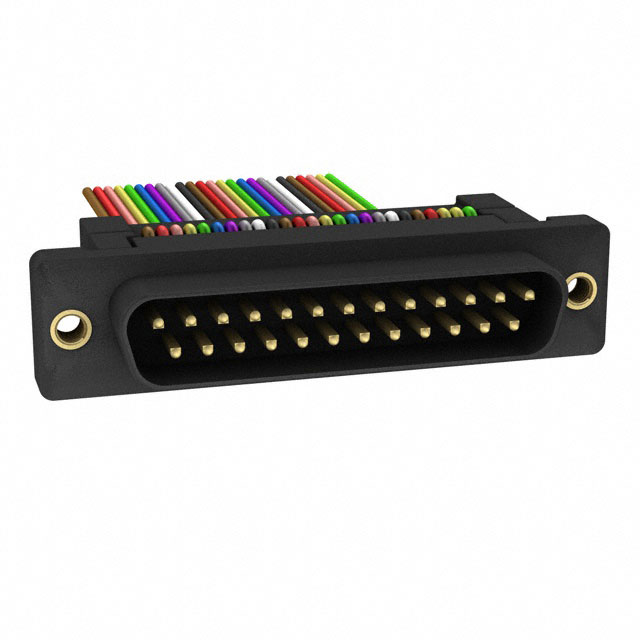

TE Connectivity AMP Connectors A7NXB-2506M	DB25	30 Áin	0.76 Ám	Male Pins Plug	6 ft	1.83 m	Individual Wire Leads	25	Gold	Unshielded	Multiple Ribbon
