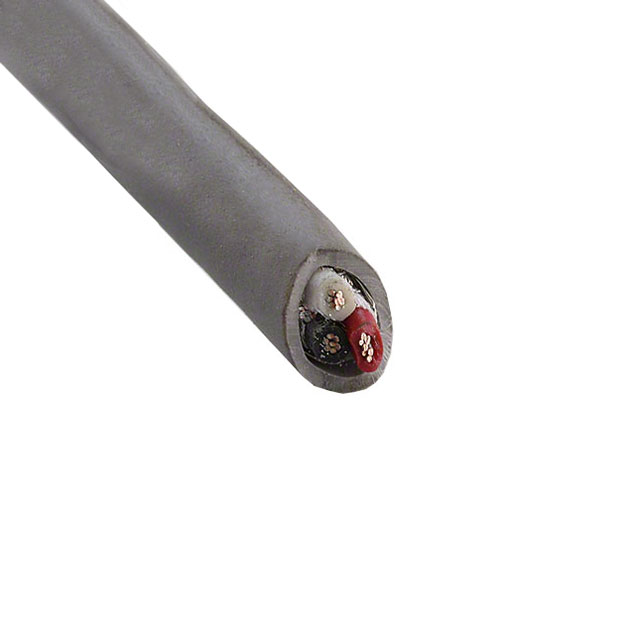

5153C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 3COND 20AWG SHLD 1000'
| Part | Number of Conductors | Length | Length | Shield Material | Shield Type | Conductor Insulation | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Wire Gauge | Ratings | Jacket Color | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Shield Coverage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 3 | 1000 ft | 304.8 m | Copper Tinned Suprashield® | Braid Foil | Poly-Vinyl Chloride (PVC) | 300 V | 6.27 mm | 0.247 " | Copper Tinned | 20 AWG | ISO 10993 UL Style 2464 | Slate | Poly-Vinyl Chloride (PVC) | 28 | 7 | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | -35 °C | 105 ░C | Communication Control | 70 % 100 % | ||
ALPHA WIRE | 3 | Copper Tinned Suprashield® | Braid Foil | Poly-Vinyl Chloride (PVC) | 300 V | 6.27 mm | 0.247 " | Copper Tinned | 20 AWG | ISO 10993 UL Style 2464 | Slate | Poly-Vinyl Chloride (PVC) | 28 | 7 | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | -35 °C | 105 ░C | Communication Control | 70 % 100 % | 30.5 m | 100 ft | ||
ALPHA WIRE | 3 | Copper Tinned Suprashield® | Braid Foil | Poly-Vinyl Chloride (PVC) | 300 V | 6.27 mm | 0.247 " | Copper Tinned | 20 AWG | ISO 10993 UL Style 2464 | Slate | Poly-Vinyl Chloride (PVC) | 28 | 7 | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | -35 °C | 105 ░C | Communication Control | 70 % 100 % | ||||
ALPHA WIRE | 3 | Copper Tinned Suprashield® | Braid Foil | Poly-Vinyl Chloride (PVC) | 300 V | 6.27 mm | 0.247 " | Copper Tinned | 20 AWG | ISO 10993 UL Style 2464 | Slate | Poly-Vinyl Chloride (PVC) | 28 | 7 | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | -35 °C | 105 ░C | Communication Control | 70 % 100 % | 152.4 m | 500 ' |
