ETMA150200 Series

Manufacturer: CUI Inc.

Catalog

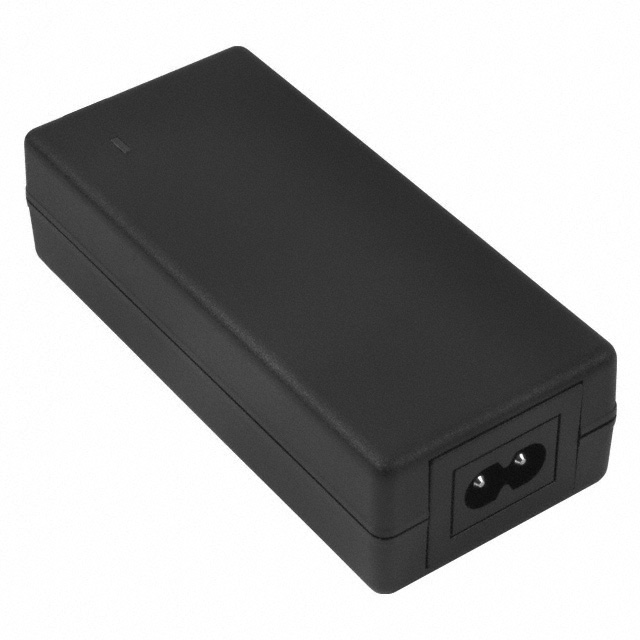

AC/DC DESKTOP ADAPTER 15V 30W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Weight	Weight	Input Connector	Region Utilized	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	No Load Power Consumption	Cord Length	Cord Length	Form	Applications	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Polarization	Standard Number	Output Connector [custom]	Output Connector	Output Connector [custom]	Output Connector [custom]	Efficiency	Input Type	Current - Output (Max) [Max]	Approval Agency	Output Connector [diameter]	Output Connector [x]
CUI Inc. ETMA150200UD-P5RP-IC	264 VAC	90 VAC	219.99 g	0.485 lb	IEC 320-C8	International	1.97 in	110 mm	4.33 in	50 mm	30 mm	1.18 in	300 mW	70.9 "	1.8 m	Desktop (Class II)	Medical	30 Watts	40 °C	0 °C	15 V	Positive Center	55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1	9.5 mm	Barrel Plug R/A	5.5 mm	2.1 mm	Level V	Cord (Sold Separately)	2 A	EN FCC SIQ TUV UL
CUI Inc. ETMA150200UD-P6P-IC	264 VAC	90 VAC	219.99 g	0.485 lb	IEC 320-C8	International	1.97 in	110 mm	4.33 in	50 mm	30 mm	1.18 in	300 mW	70.9 "	1.8 m	Desktop (Class II)	Medical	30 Watts	40 °C	0 °C	15 V	Positive Center	55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1		Barrel Plug			Level V	Cord (Sold Separately)	2 A	EN FCC SIQ TUV UL	2.5 mm 5.5 mm	9.5 mm
