EMC10 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 20POS 0.100

Part	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Type	Pitch	Pitch	Card Type	Number of Positions	Color	Read Out	Number of Positions/Bay/Row	Termination	Card Thickness	Card Thickness	Contact Type	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Gender	Number of Rows [custom]	Features	Flange Feature [diameter]	Flange Feature [diameter]
Sullins Connector Solutions EMC10DRXI	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Gold	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	20	Blue	Dual	10	Solder	1.57 mm	0.062 in	Full Bellows	4-40 Threaded Insert Top Mount Opening	30 Áin	0.76 Ám	Phosphor Bronze	Female	2
Sullins Connector Solutions EMC10DRTI-S13	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Gold	Board Edge Straddle Mount	0.1 "	2.54 mm	Non Specified - Dual Edge	20	Blue	Dual	10	Solder	1.57 mm	0.062 in	Full Bellows	4-40 Threaded Insert Top Mount Opening	30 Áin	0.76 Ám	Phosphor Bronze	Female	2	Card Extender
Sullins Connector Solutions EMC10DREF-S13	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Gold	Board Edge Straddle Mount	0.1 "	2.54 mm	Non Specified - Dual Edge	20	Blue	Dual	10	Solder Eyelet(s)	1.57 mm	0.062 in	Full Bellows	Floating Bobbin Top Mount Opening	30 Áin	0.76 Ám	Phosphor Bronze	Female	2	Card Extender	0.116 "	2.95 mm
Sullins Connector Solutions EMC10DRES-S13	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Gold	Board Edge Straddle Mount	0.1 "	2.54 mm	Non Specified - Dual Edge	20	Blue	Dual	10	Solder Eyelet(s)	1.57 mm	0.062 in	Full Bellows	Side Mount Opening Unthreaded	30 Áin	0.76 Ám	Phosphor Bronze	Female	2	Card Extender	0.125 "	3.18 mm
Sullins Connector Solutions EMC10DRTI-S734	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Gold	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	20	Blue	Dual	10	Solder	0.79 mm	0.031 in	Full Bellows	4-40 Threaded Insert Top Mount Opening	30 Áin	0.76 Ám	Phosphor Bronze	Female	2
Sullins Connector Solutions EMC10DRTN-S734	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Gold	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	20	Blue	Dual	10	Solder	0.79 mm	0.031 in	Full Bellows		30 Áin	0.76 Ám	Phosphor Bronze	Female	2
Sullins Connector Solutions EMC10DREH	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Gold	Panel Mount	0.1 "	2.54 mm	Non Specified - Dual Edge	20	Blue	Dual	10	Solder Eyelet(s)	1.57 mm	0.062 in	Full Bellows		30 Áin	0.76 Ám	Phosphor Bronze	Female	2		0.125 "	3.18 mm
Sullins Connector Solutions EMC10DRXS-S734	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Gold	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	20	Blue	Dual	10	Solder	0.79 mm	0.031 in	Full Bellows	Side Mount Opening Unthreaded	30 Áin	0.76 Ám	Phosphor Bronze	Female	2		0.125 "	3.18 mm
Sullins Connector Solutions EMC10DRAS	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Gold	Right Angle Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	20	Blue	Dual	10	Solder	1.57 mm	0.062 in	Full Bellows	Side Mount Opening Unthreaded	30 Áin	0.76 Ám	Phosphor Bronze	Female	2		0.125 "	3.18 mm

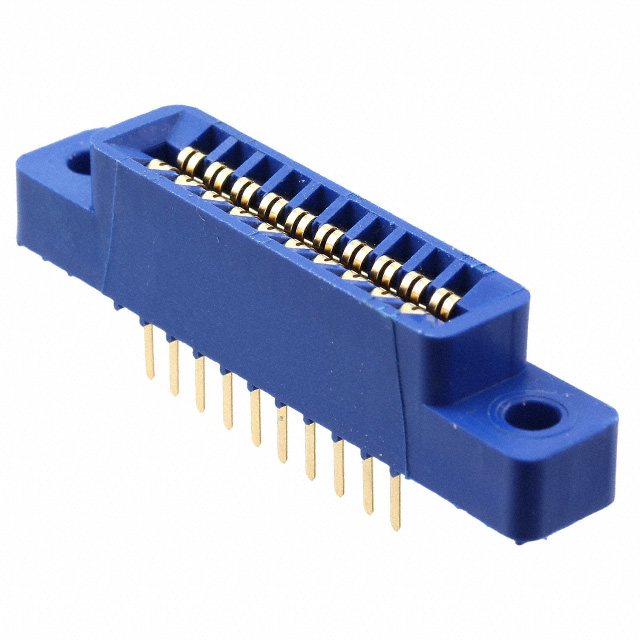

Sullins Connector Solutions EMC10DRXH	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	Gold	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	20	Blue	Dual	10	Solder	1.57 mm	0.062 in	Full Bellows		30 Áin	0.76 Ám	Phosphor Bronze	Female	2		0.125 "	3.18 mm
