3159-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC .045DIA GOLD
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Mounting Hole Diameter | Mounting Hole Diameter | Insulation | Contact Finish | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Type | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Style | Contact Material | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

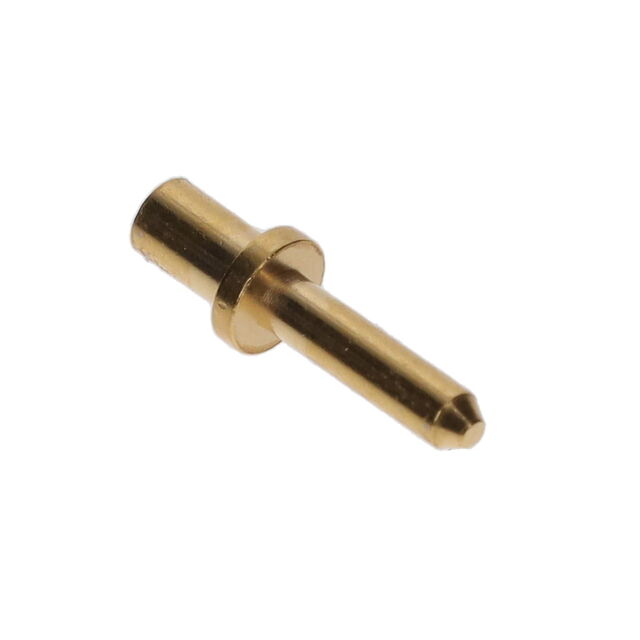

 Mill-Max Manufacturing Corp. | 0.092 in | 2.34 mm | Swage | 0.064 " | 1.63 mm | Non-Insulated | Gold | 4.78 mm | 0.188 in | PC Pin | Through Hole | 50 µin | 1.27 µm | 2.39 mm | 0.094 " | Single End | Brass Alloy | 0.045 in | 1.14 mm | 0.302 " | 7.67 mm |

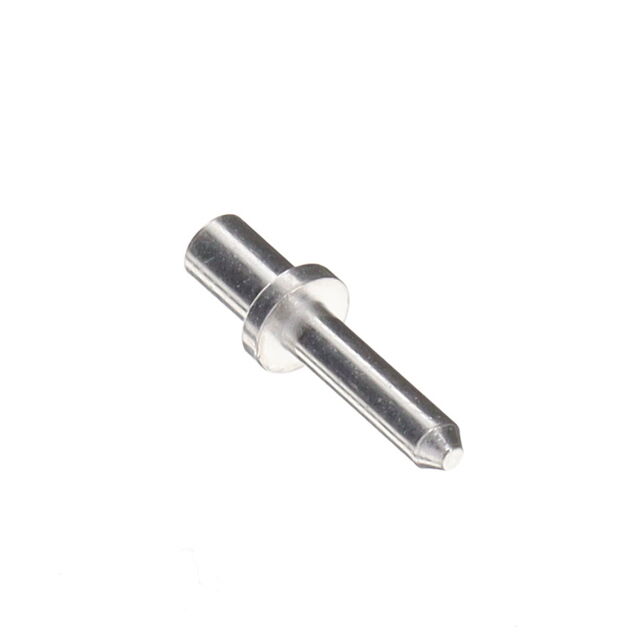

 Mill-Max Manufacturing Corp. | 0.092 in | 2.34 mm | Swage | 0.064 " | 1.63 mm | Non-Insulated | Tin | 4.78 mm | 0.188 in | PC Pin | Through Hole | 200 Áin | 5.08 Ám | 2.39 mm | 0.094 " | Single End | Brass Alloy | 0.045 in | 1.14 mm | 0.302 " | 7.67 mm |
Mill-Max Manufacturing Corp. | 0.092 in | 2.34 mm | Swage | 0.064 " | 1.63 mm | Non-Insulated | Tin-Lead | 4.78 mm | 0.188 in | PC Pin | Through Hole | 200 Áin | 5.08 Ám | 2.39 mm | 0.094 " | Single End | Brass Alloy | 0.045 in | 1.14 mm | 0.302 " | 7.67 mm |
 Mill-Max Manufacturing Corp. | 0.092 in | 2.34 mm | Swage | 0.064 " | 1.63 mm | Non-Insulated | Gold | 4.78 mm | 0.188 in | PC Pin | Through Hole | 20 µin | 0.51 µm | 2.39 mm | 0.094 " | Single End | Brass Alloy | 0.045 in | 1.14 mm | 0.302 " | 7.67 mm |
