284414 Series

Catalog

TERM BLK 8P TOP ENTRY 3.5MM PCB

Part	Number of Levels	Screw Thread	Features	Color	Contact Material - Plating [custom]	Wire Termination	Clamp Material - Plating	Mating Orientation	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Wire Gauge [Max]	Wire Gauge [Min]	Current	Screw Material - Plating	Positions Per Level	Mounting Type	Voltage

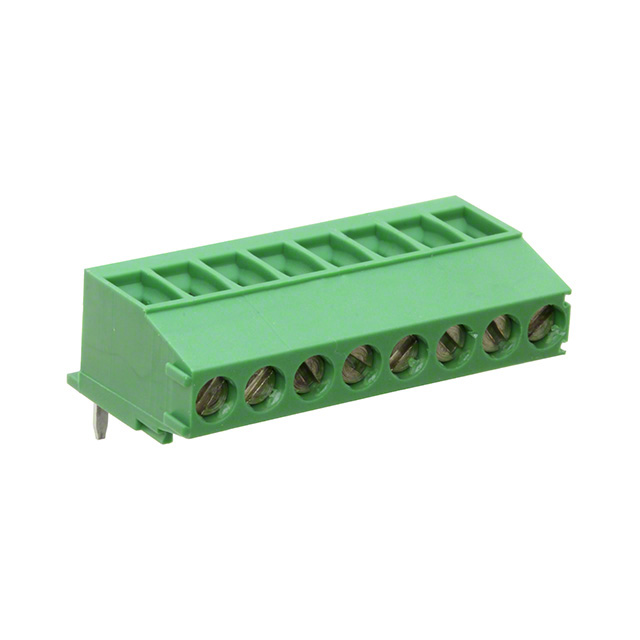

TE Connectivity Raychem Cable Protection 284414-8	1	M3	Interlocking (Side)	Green	Brass - Tin Plated	Screw - Rising Cage Clamp	Brass - Nickel Plated	Vertical with Board	2.2 Lb-In	0.25 Nm	3.5 mm	0.138 in	30 AWG	12 AWG	12 A	Brass - Nickel Plated	8	Through Hole	300 V

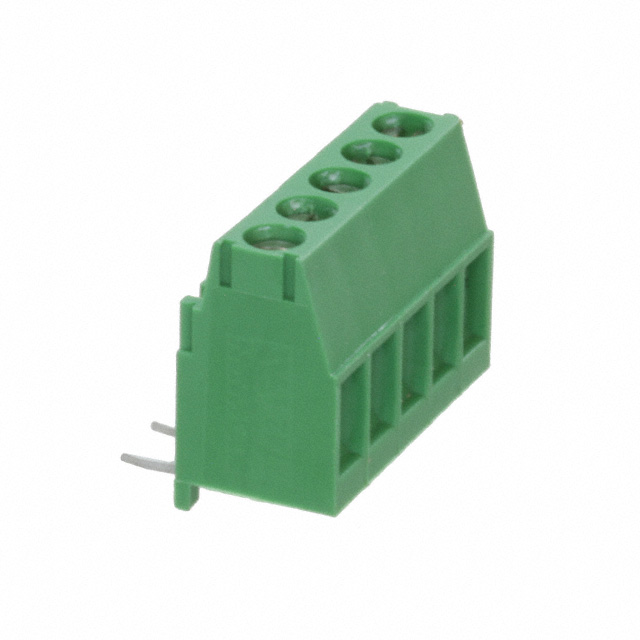

TE Connectivity Raychem Cable Protection 284414-5	1	M3	Interlocking (Side)	Green	Brass - Tin Plated	Screw - Rising Cage Clamp	Brass - Nickel Plated	Vertical with Board	2.2 Lb-In	0.25 Nm	3.5 mm	0.138 in	30 AWG	12 AWG	12 A	Brass - Nickel Plated	5	Through Hole	300 V

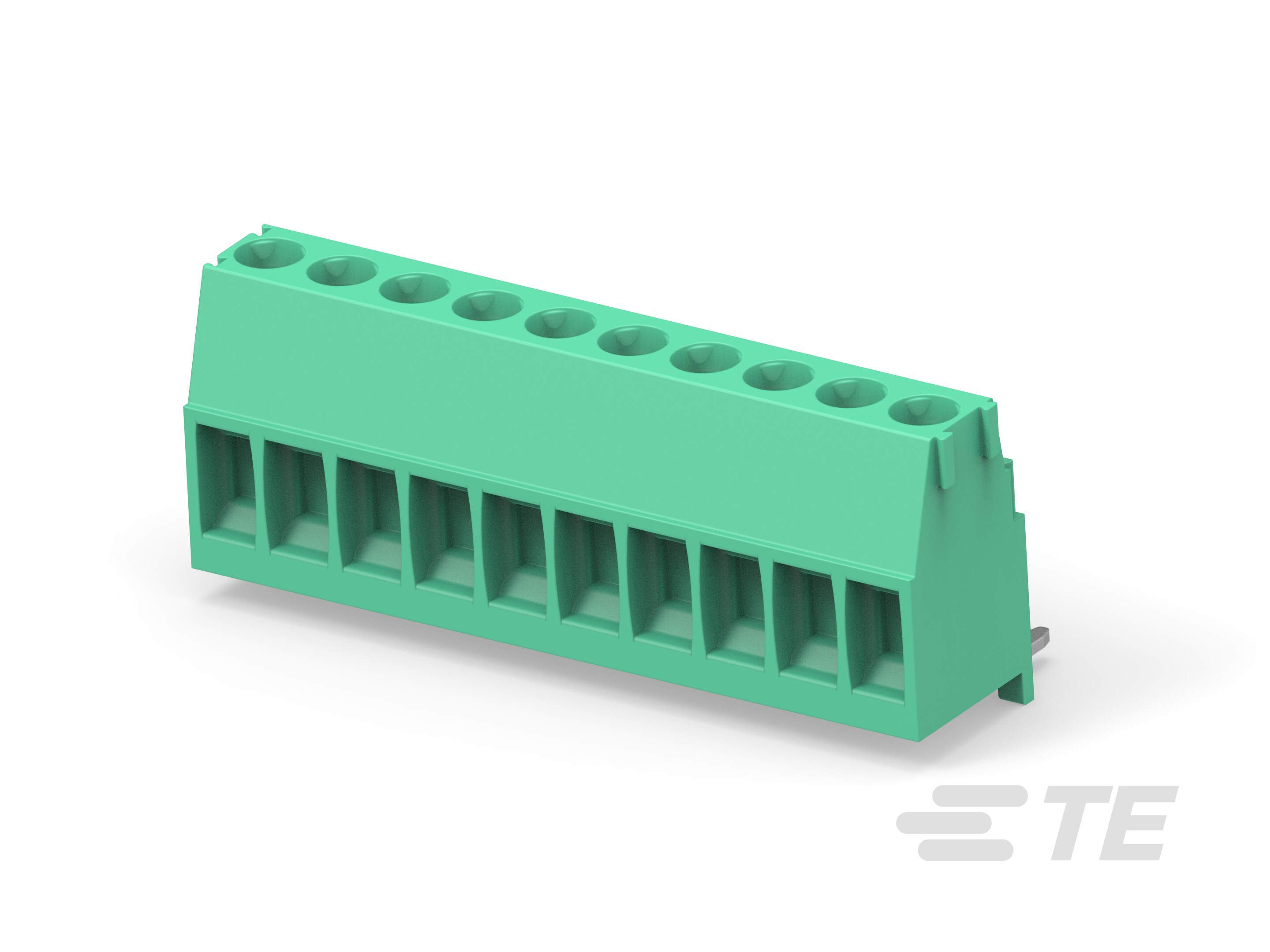

TE Connectivity Raychem Cable Protection 1-284414-0	1	M3	Interlocking (Side)	Green	Brass - Tin Plated	Screw - Rising Cage Clamp	Brass - Nickel Plated	Vertical with Board	2.2 Lb-In	0.25 Nm	3.5 mm	0.138 in	30 AWG	12 AWG	12 A	Brass - Nickel Plated	10	Through Hole	300 V
TE Connectivity Raychem Cable Protection 284414-2	1	M3	Interlocking (Side)	Green	Brass - Tin Plated	Screw - Rising Cage Clamp	Brass - Nickel Plated	Vertical with Board	2.2 Lb-In	0.25 Nm	3.5 mm	0.138 in	30 AWG	12 AWG	12 A	Brass - Nickel Plated	2	Through Hole	300 V
