GBC30D Series

Catalog

CONN HEADER SMD 60POS 2.54MM

Part	Connector Type	Mounting Type	Contact Type	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shrouding	Insulation Material	Contact Finish - Post	Style	Contact Length - Mating [x]	Contact Length - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Material	Material Flammability Rating	Number of Positions	Termination	Contact Finish - Mating	Number of Positions Loaded	Insulation Color	Contact Length - Mating [x]

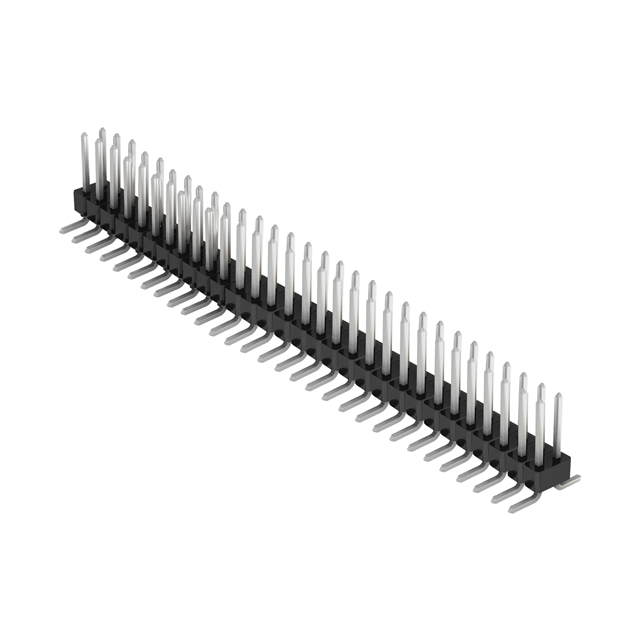

Sullins Connector Solutions GBC30DABN-M30	Breakaway Header	Surface Mount	Male Pin	0.1 in	2.54 mm	2.54 mm	0.1 in	Square	-65 ░C	150 °C	Push-Pull	Unshrouded	Nylon 9T Polyamide (PA9T)	Tin	Board to Board Cable	0.23 in	5.84 mm	3 A	10 çin	0.25 çm	2.54 µm	100 µin	2	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	60	Solder	Gold	All	Black
Sullins Connector Solutions GBC30DFBN-M30	Breakaway Header	Surface Mount	Male Pin	0.1 in	2.54 mm	2.54 mm	0.1 in	Square	-65 ░C	150 °C	Push-Pull	Unshrouded	Nylon 9T Polyamide (PA9T)	Tin	Board to Board Cable	0.318 "		3 A	10 çin	0.25 çm	2.54 µm	100 µin	2	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	60	Solder	Gold	All	Black	8.08 mm
