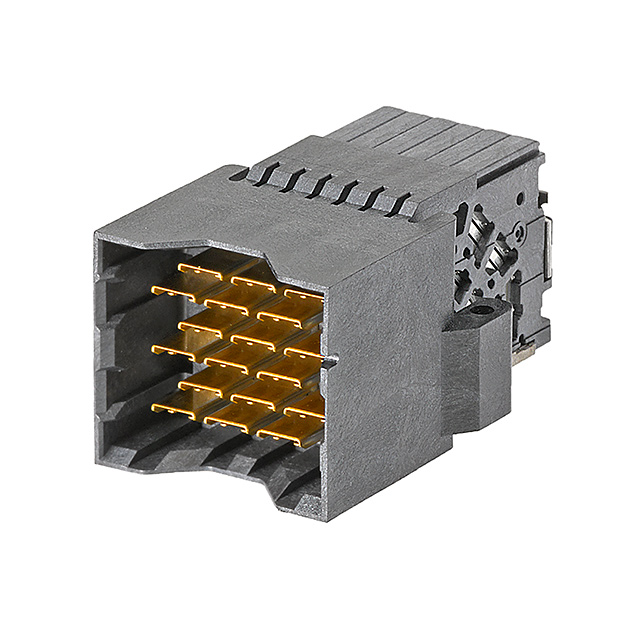

173460 Series
Manufacturer: Molex
Beta
⌘K
CONN HEADER IMPEL 36POS PCB
| Part | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Voltage Rating | Contact Finish | Number of Positions Loaded | Contact Layout, Typical | Connector Type | Number of Rows | Connector Usage | Number of Columns | Color | Connector Style | Current Rating (Amps) | Pitch [x] | Pitch [x] | Termination | Mounting Type | Number of Positions | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | UL94 V-0 | 85 °C | -55 °C | 10 Áin | 0.25 Ám | 150 VAC | Gold | All | 18 Differential Pairs | Header Male Pins and Blades | 6 | Backplane Orthogonal | 6 | Black | Impel™ | 0.075 A | 0.092 in | 2.35 mm | Press-Fit | Through Hole Right Angle | 36 | Shielded |
