UKK Series

Catalog

DIN RAIL TERMINAL BLOCKS UKK 5-TG OHNE P

Part	Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL	Material - Insulation	Material Flammability Rating	Stripping Length	Current - IEC	Number of Positions	Features	Current - UL	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Terminal - Width [y]	Voltage - IEC	Number of Levels	Number of Levels	Color	Termination Style	For Use With/Related Products	Length [x]	Length [x]	Height (Max) [z]	Height (Max) [z]	Mounting Type	Housing Color
Phoenix Contact 3003949	Feed Through	12 AWG	26 AWG	300 V

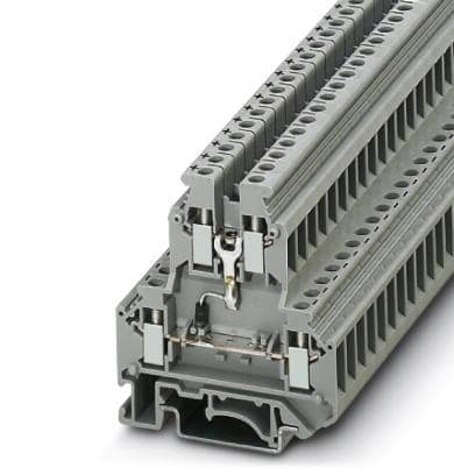

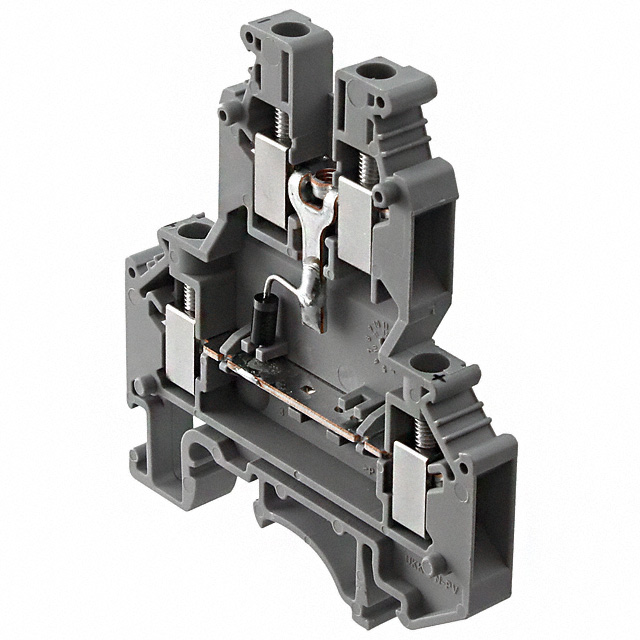

Phoenix Contact 2791032	Feed Through	10 AWG	26 AWG	600 V	Nylon Polyamide (PA)	UL94 V-0	8 mm	32 A	4	Diode	30 A	4 mm²	0.2 mm²	6.2 mm	500 V	2	Connected	Gray	Screw

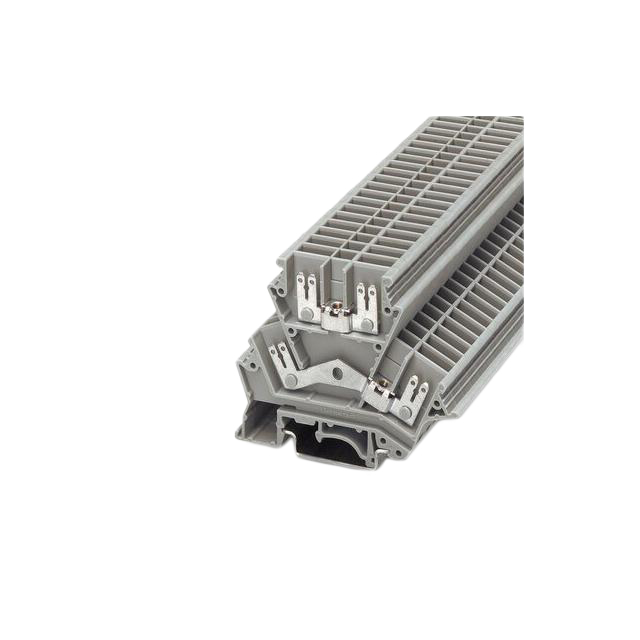

Phoenix Contact 2771133	Feed Through			300 V	Nylon Polyamide (PA)	UL94 V-0		20 A	4		20 A	6 mm²	0.5 mm²	6.2 mm	400 V	2		Gray	Tab

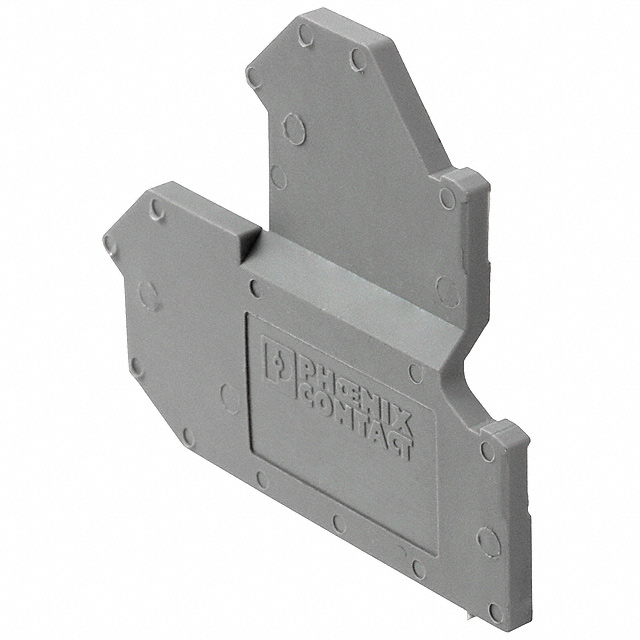

Phoenix Contact 2770891	End Plate Rail Type																	Gray		CLIPLINE UKK Series

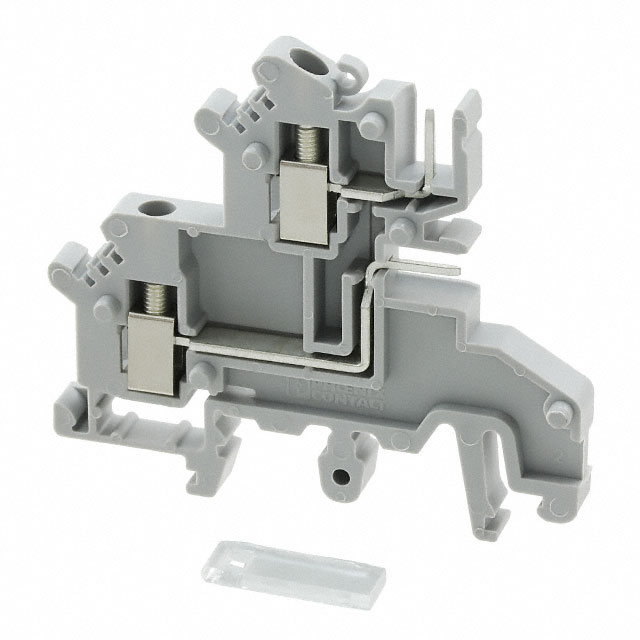

Phoenix Contact 2770846	Plug Connection	12 AWG	30 AWG	300 V	Nylon Polyamide (PA)	UL94 V-2	8 mm	12 A	4		10 A	4 mm²	0.2 mm²	5.1 mm	250 V	2			Plug Receptacles Screw		0.186 ft	56.7 mm	2.354 in	59.8 mm	DIN Rail	Gray
Phoenix Contact 2770600	Separator Rail Type																	Gray		CLIPLINE UKK Series

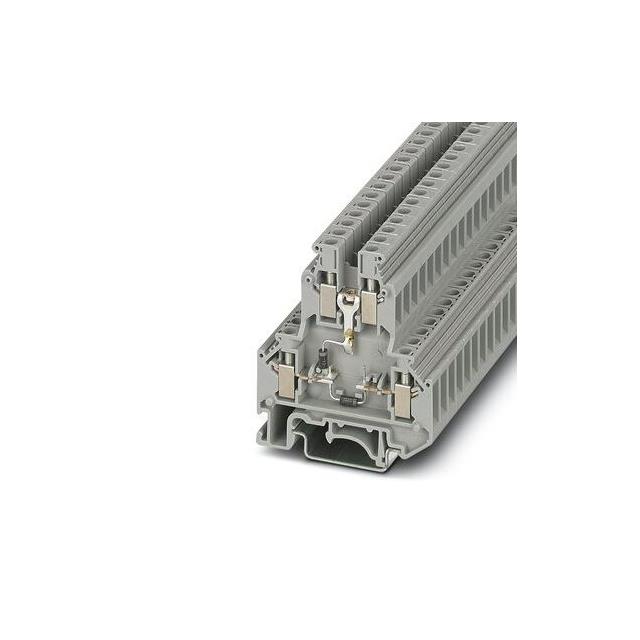

Phoenix Contact 2791142	Feed Through	12 AWG	24 AWG		Nylon Polyamide (PA)	UL94 V-0	8 mm	32 A	4	Diode		4 mm²	0.2 mm²	6.2 mm	500 V	2	Connected	Gray	Screw
