SFW10R Series

Catalog

CONN FPC BOTTOM 10POS 1MM R/A

Part	Actuator Color	Housing Color	Contact Material	Height Above Board [z]	Height Above Board [z]	Housing Material	Mounting Type	Locking Feature	Material Flammability Rating	Actuator Material	FFC, FCB Thickness	Number of Positions	Flat Flex Type	Cable End Type	Pitch	Pitch	Termination	Connector/Contact Type	Contact Finish	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Features
Amphenol ICC (FCI) SFW10R-3STAE5LF	Brown	Black	Phosphor Bronze	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Slide Lock	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	0.33 mm	10	FPC	Tabbed	1 mm	0.039 in	Solder	Contacts Bottom	Gold
Amphenol ICC (FCI) SFW10R-3STAE1LF		Black	Phosphor Bronze	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount		UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	10	FPC	Straight or Tapered	1 mm	0.039 in	Kinked Pin	Contacts Bottom	Gold	20	-55 C	105 ░C	100 V
Amphenol ICC (FCI) SFW10R-2STAE1LF	Black	Brown	Phosphor Bronze	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Slide Lock	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	0.33 mm	10	FPC	Tapered	1 mm	0.039 in	Solder	Contacts Top	Gold	20	-55 C	105 ░C	100 V

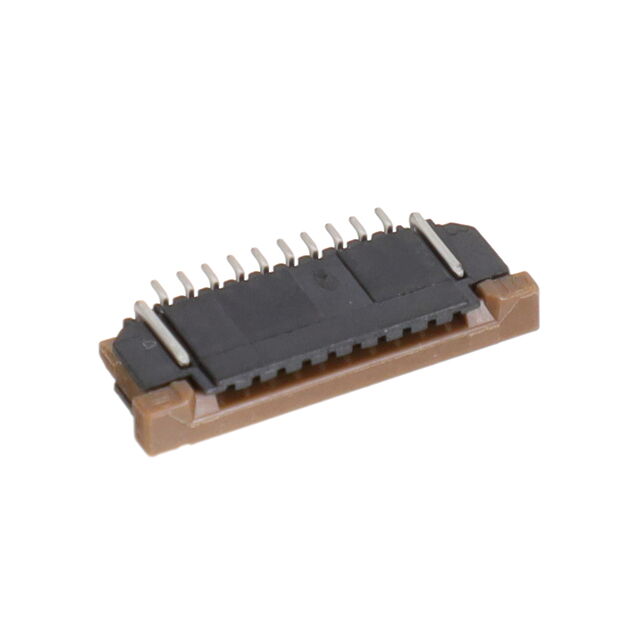

Amphenol ICC (FCI) SFW10R-3STE1LF	Black	Black	Phosphor Bronze	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Slide Lock	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled		10	FFC FPC	Straight Tapered	1 mm	0.039 in	Solder	Contacts Bottom	Tin	20	-55 C	105 ░C	100 V	0.3 mm	0.33 mm	Solder Retention Zero Insertion Force (ZIF)

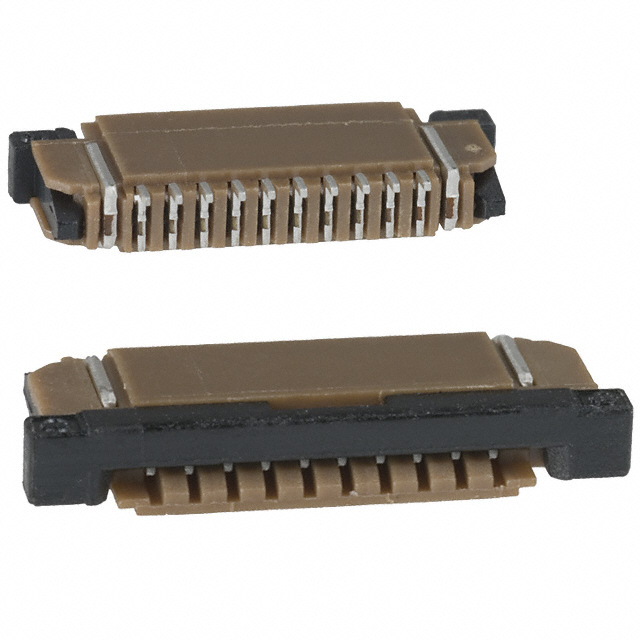

Amphenol ICC (FCI) SFW10R-1STE1	Black	Brown	Phosphor Bronze	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Slide Lock	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled		10	FFC FPC	Straight Tapered	1 mm	0.039 in	Solder	Contacts Bottom	Tin Alloy					0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW10R-1STE1HLF	Black	Black	Phosphor Bronze	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Right Angle Surface Mount	Slide Lock	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free		10	FFC FPC	Straight Tapered	1 mm	0.039 in	Solder	Contacts Bottom	Tin	20	-55 C	105 ░C	100 V	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW10R-1STAE1LF	Black	Brown	Phosphor Bronze	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Slide Lock	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled		10	FPC	Straight Tapered	1 mm	0.039 in	Solder	Contacts Bottom	Gold	20	-55 C	105 ░C	100 V	0.3 mm	0.33 mm

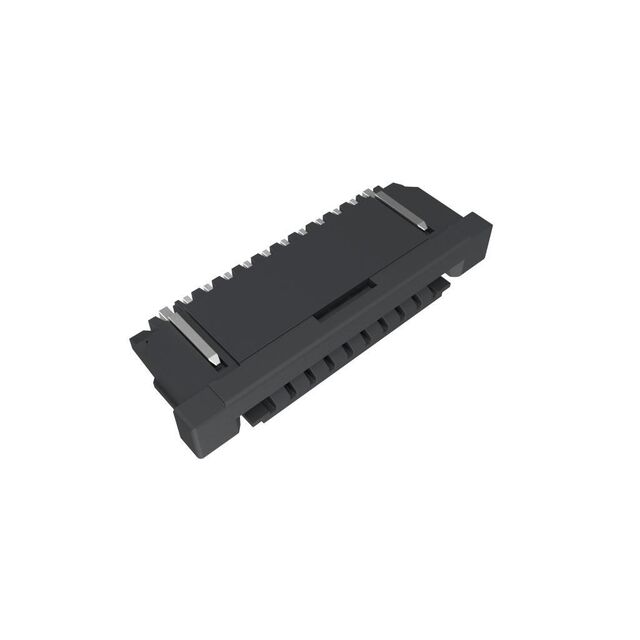

Amphenol ICC (FCI) SFW10R-5STE1				0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Slide Lock			0.3 mm	10	CIC	Tapered	1 mm	0.039 in	Solder	Contacts Bottom
Amphenol ICC (FCI) SFW10R-6STE1				0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Slide Lock			0.3 mm	10	CIC	Tapered	1 mm	0.039 in	Solder	Contacts Top
Amphenol ICC (FCI) SFW10R-1STE1LF	Black	Brown	Phosphor Bronze	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Slide Lock	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled		10	FFC FPC	Straight Tapered	1 mm	0.039 in	Kinked Pin	Contacts Bottom	Tin	20	-55 C	105 ░C	100 V	0.3 mm	0.33 mm
