3093A Series

Catalog

COAX 18AWG 100 OHM

Part	Shield Material	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	VoP, Velocity of Propagation	Shield Coverage	Dielectric Material	Jacket Color	Cable Group	Conductor Strand	Wire Gauge	Cable Type	Features	Length [x]	Length [x]	Shield Type	Impedance	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]

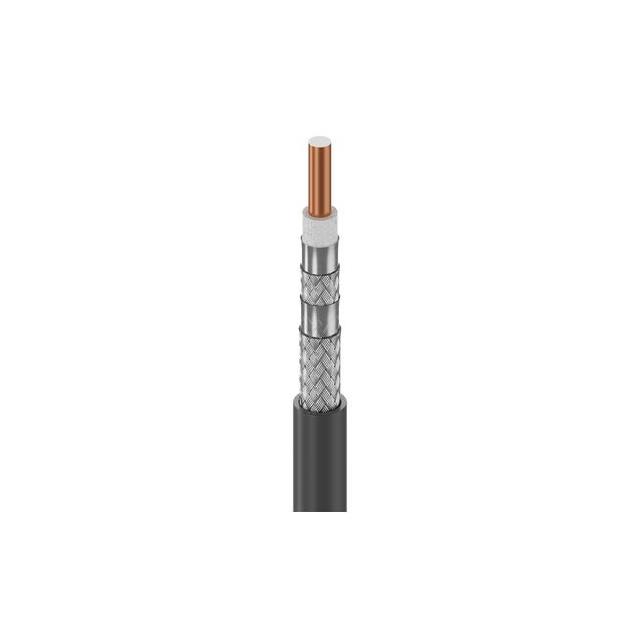

Belden Inc. 3093A 0101000	Aluminum	Copper Coated Steel	150 °C	-20 ░C	4.32 mm	0.17 in	82	40 % 60 % 100 %	Foam Fluorinated Ethylene Propylene (FFEP)	Black	RG-6	Solid	18 AWG	Coaxial - Plenum	Quad Shield	304.8 m	1000 ft	Braid Foil	100 Ohms	Polyvinylidene Fluoride (PVDF)	0.274 in	6.96 mm
Belden Inc. 3093A 0102500	Aluminum	Copper Coated Steel	150 °C	-20 ░C	4.32 mm	0.17 in	82	40 % 60 % 100 %	Foam Fluorinated Ethylene Propylene (FFEP)	Black	RG-6	Solid	18 AWG	Coaxial - Plenum	Quad Shield	152.4 m	500 ft	Braid Foil	100 Ohms	Polyvinylidene Fluoride (PVDF)	0.274 in	6.96 mm
Belden Inc. 3093A 0105000	Aluminum	Copper Coated Steel	150 °C	-20 ░C	4.32 mm	0.17 in	82	40 % 60 % 100 %	Foam Fluorinated Ethylene Propylene (FFEP)	Black	RG-6	Solid	18 AWG	Coaxial - Plenum	Quad Shield			Braid Foil	100 Ohms	Polyvinylidene Fluoride (PVDF)	0.274 in	6.96 mm
