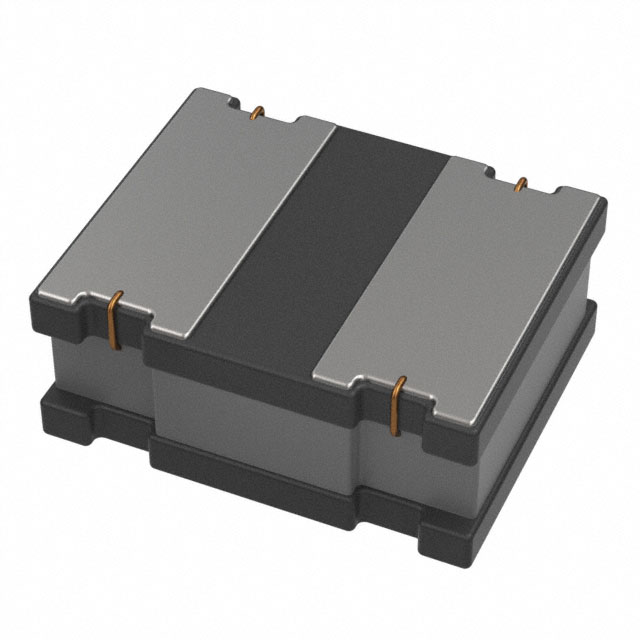

SDEM25201B Series

Catalog

FIXED IND 1.5UH 2.55A 0.072OHM

Part	Supplier Device Package	Package / Case	Package / Case	Inductance	DC Resistance (DCR)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Saturation (Isat)	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Mounting Type	Material - Core	Shielding	Current Rating (Amps)	Tolerance	DC Resistance (DCR) [Max]
Delta Electronics/Cyntec SDEM25201B-1R5MS	2520	2520 Metric	1008	1.5 µH	72 mOhm	2.5 mm	0.079 in	0.098 in	2 mm	2.9 A	-55 C	125 °C	1.2 mm	0.047 "	1 MHz	Surface Mount	Metal	Shielded	2.55 A	20 %
Delta Electronics/Cyntec SDEM25201B-3R3MS	2520	2520 Metric	1008	3.3 µH		2.5 mm	0.079 in	0.098 in	2 mm	2 A	-55 C	125 °C	1.2 mm	0.047 "	1 MHz	Surface Mount	Metal	Shielded	1.45 A	20 %	188 mOhm
Delta Electronics/Cyntec SDEM25201B-100MS	2520	2520 Metric	1008	10 µH	450 mOhm	2.5 mm	0.079 in	0.098 in	2 mm	1 A	-55 C	125 °C	1.2 mm	0.047 "	1 MHz	Surface Mount	Metal	Shielded	900 mA	20 %
Delta Electronics/Cyntec SDEM25201B-1R0MS	2520	2520 Metric	1008	1 µH		2.5 mm	0.079 in	0.098 in	2 mm	3.8 A	-55 C	125 °C	1.2 mm	0.047 "	1 MHz	Surface Mount	Metal	Shielded	3.35 A	20 %	52.5 mOhm
Delta Electronics/Cyntec SDEM25201B-2R2MS	2520	2520 Metric	1008	2.2 µH		2.5 mm	0.079 in	0.098 in	2 mm	2.3 A	-55 C	125 °C	1.2 mm	0.047 "	1 MHz	Surface Mount	Metal	Shielded	1.85 A	20 %	117 mOhm
Delta Electronics/Cyntec SDEM25201B-4R7MS	2520	2520 Metric	1008	4.7 ÁH		2.5 mm	0.079 in	0.098 in	2 mm	1.65 A	-55 C	125 °C	1.2 mm	0.047 "	1 MHz	Surface Mount	Metal	Shielded	1.45 A	20 %	240 mOhm
Delta Electronics/Cyntec SDEM25201B-150MS	2520	2520 Metric	1008	15 µH		2.5 mm	0.079 in	0.098 in	2 mm	800 mA	-55 C	125 °C	1.2 mm	0.047 "	1 MHz	Surface Mount	Metal	Shielded	0.63 A	20 %	768 mOhm
Delta Electronics/Cyntec SDEM25201B-R47MS	2520	2520 Metric	1008	470 nH	32 mOhm	2.5 mm	0.079 in	0.098 in	2 mm	5 A	-55 C	125 °C	1.2 mm	0.047 "	1 MHz	Surface Mount	Metal	Shielded	4 A	20 %
