PS2565L2-1 Series

High Isolation Voltage AC Input Response Type MULTI Photocoupler Series

Manufacturer: Renesas Electronics Corporation

Catalog

High Isolation Voltage AC Input Response Type MULTI Photocoupler Series

Part	Current Transfer Ratio (Min) [Min]	Voltage - Forward (Vf) (Typ)	Number of Channels	Current - DC Forward (If) (Max) [Max]	Vce Saturation (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current Transfer Ratio (Max)	Output Type	Current - Output / Channel	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]
Renesas Electronics Corporation PS2565L1-1Y-A	80 %	1.17 V	1	80 mA	300 mV	4-DIP	100 °C	-55 °C	4-DIP	400 %	1.81 mOhm	50 mA	Through Hole	5 µs	3 µs
Renesas Electronics Corporation PS2565L2-1Y-F3-A	80 %	1.17 V	1	80 mA	300 mV	4-SMD Gull Wing	100 °C	-55 °C	4-SMD	400 %	1.81 mOhm	50 mA	Surface Mount	5 µs	3 µs
Renesas Electronics Corporation PS2565L2-1-V-A	80 %	1.17 V	1	80 mA	300 mV	4-SMD Gull Wing	100 °C	-55 °C	4-SMD	400 %	1.81 mOhm	50 mA	Surface Mount	5 µs	3 µs
Renesas Electronics Corporation PS2565L-1Y-A	80 %	1.17 V	1	80 mA	300 mV	4-SMD Gull Wing	100 °C	-55 °C	4-SMD	400 %	1.81 mOhm	50 mA	Surface Mount	5 µs	3 µs

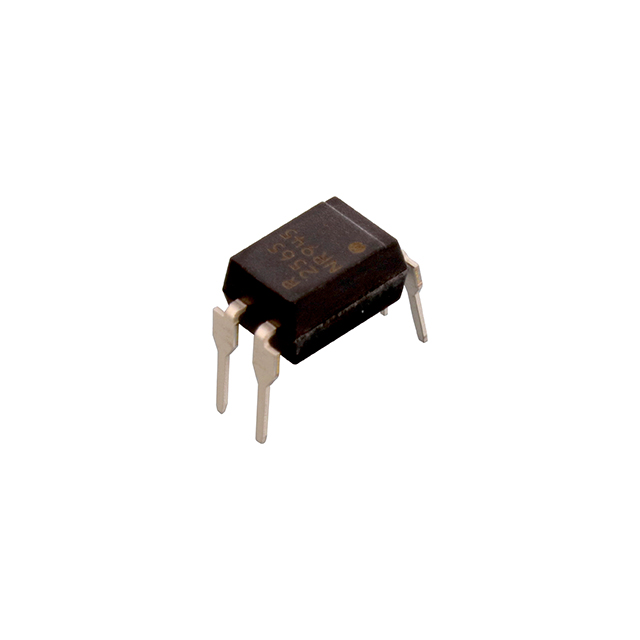

Renesas Electronics Corporation PS2565-1Y-A	80 %	1.17 V	1	80 mA	300 mV	4-DIP (0.300" 7.62mm)	100 °C	-55 °C	4-DIP	400 %	1.81 mOhm	50 mA	Through Hole	5 µs	3 µs
Renesas Electronics Corporation PS2565L2-1-F3-A	80 %	1.17 V	1	80 mA	300 mV	4-SMD Gull Wing	100 °C	-55 °C	4-SMD	400 %	1.81 mOhm	50 mA	Surface Mount	5 µs	3 µs
Renesas Electronics Corporation PS2565-1-A	80 %	1.17 V	1	80 mA	300 mV	4-DIP (0.300" 7.62mm)	100 °C	-55 °C	4-DIP	400 %	1.81 mOhm	50 mA	Through Hole	5 µs	3 µs
Renesas Electronics Corporation PS2565L-1Y-V-F3-A	80 %	1.17 V	1	80 mA	300 mV	4-SMD Gull Wing	100 °C	-55 °C	4-SMD	400 %	1.81 mOhm	50 mA	Surface Mount	5 µs	3 µs
Renesas Electronics Corporation PS2565L-1Y-V-A	80 %	1.17 V	1	80 mA	300 mV	4-SMD Gull Wing	100 °C	-55 °C	4-SMD	400 %	1.81 mOhm	50 mA	Surface Mount	5 µs	3 µs
Renesas Electronics Corporation PS2565L2-1Y-V-A	80 %	1.17 V	1	80 mA	300 mV	4-SMD Gull Wing	100 °C	-55 °C	4-SMD	400 %	1.81 mOhm	50 mA	Surface Mount	5 µs	3 µs

Catalog

High Isolation Voltage AC Input Response Type MULTI Photocoupler Series

Description

The PS2565-1 is optically coupled isolators containing GaAs light emitting diodes and an NPN silicon phototransistor. The PS2565-1 is in a plastic DIP (Dual In-line Package) and the PS2565L-1 is lead bending type (Gull-wing) for surface mount. The PS2565L1-1 is lead bending type for long creepage distance. The PS2565L2-1 is lead bending type for long creepage distance (Gull-wing) for surface mount.
