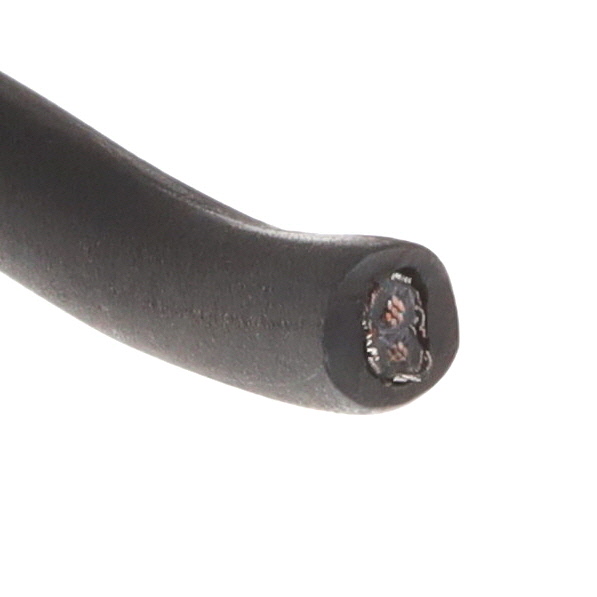

M4220 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
AE COAX /1000 FT ROHS COMPLIANT: YES
| Part | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Shield Coverage | VoP, Velocity of Propagation | Cable Group | Conductor Strand | Jacket Color | Impedance | Wire Gauge | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Length [x] | Length [x] | Shield Type | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 0.079 in | 2.01 mm | -20 ░C | 60 °C | Copper Tinned | 85 % | 66 | RG-108 | 7 Strands 28 AWG | Black | 78 Ohms | 20 AWG | 0.56 mm² | 0.235 " | 5.97 mm | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Braid | Twinaxial |
ALPHA WIRE | Copper Tinned | 0.079 in | 2.01 mm | -20 ░C | 60 °C | Copper Tinned | 85 % | 66 | RG-108 | 7 Strands 28 AWG | Black | 78 Ohms | 20 AWG | 0.56 mm² | 0.235 " | 5.97 mm | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Braid | Twinaxial |
