717-006 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 6POS 0.156

Part	Material - Insulation	Termination Rows	Read Out	Number of Positions	Color	Mounting Type	Card Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Number of Rows	Contact Type	Contact Finish	Gender	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row

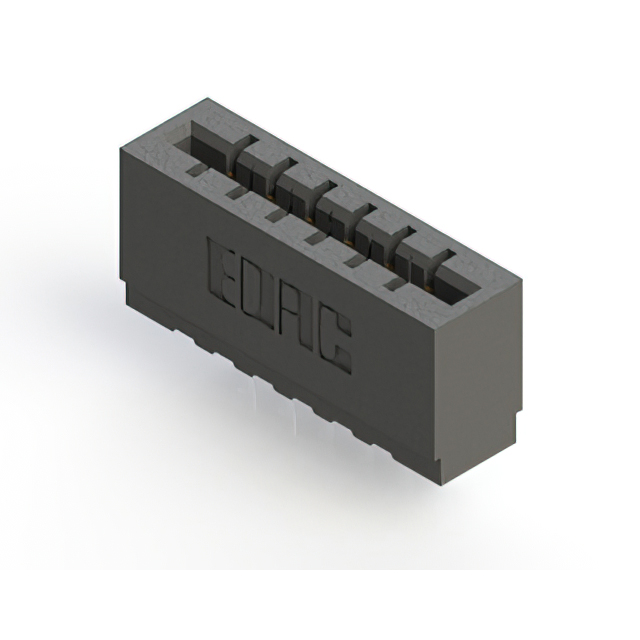

EDAC Inc. 717-006-520-101	Polyester Thermoplastic	1	Single	6	Black	Through Hole	Non Specified - Single Edge	Press-Fit	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Cantilever	Gold	Female	3.96 mm	0.156 in	-40 C	105 ░C	6

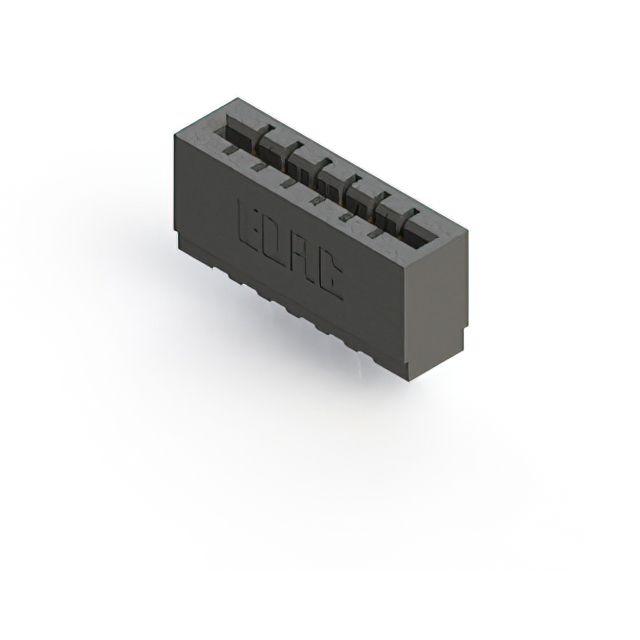

EDAC Inc. 717-006-541-101	Polyester Thermoplastic	1	Single	6	Black	Through Hole	Non Specified - Single Edge	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Cantilever	Gold	Female	3.96 mm	0.156 in	-40 C	105 ░C	6

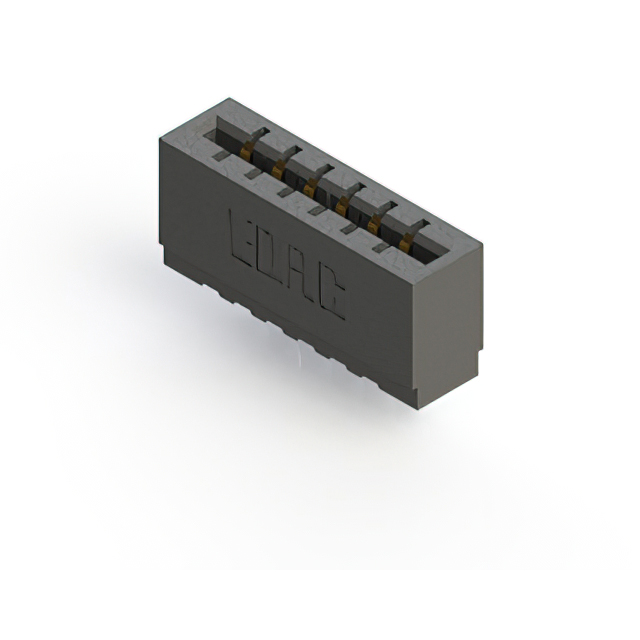

EDAC Inc. 717-006-545-101	Polyester Thermoplastic	1	Single	6	Black	Through Hole	Non Specified - Single Edge	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Cantilever	Gold	Female	3.96 mm	0.156 in	-40 C	105 ░C	6
EDAC Inc. 717-006-525-101	Polyester Thermoplastic	1	Single	6	Black	Through Hole	Non Specified - Single Edge	Press-Fit	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Cantilever	Gold	Female	3.96 mm	0.156 in	-40 C	105 ░C	6
EDAC Inc. 717-006-540-101	Polyester Thermoplastic	1	Single	6	Black	Through Hole	Non Specified - Single Edge	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Cantilever	Gold	Female	3.96 mm	0.156 in	-40 C	105 ░C	6

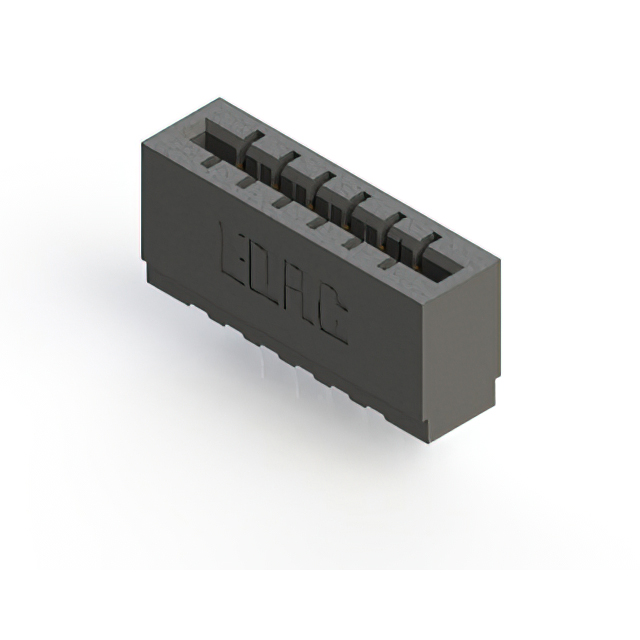

EDAC Inc. 717-006-522-101	Polyester Thermoplastic	1	Single	6	Black	Through Hole	Non Specified - Single Edge	Press-Fit	30 Áin	0.76 Ám	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Cantilever	Gold	Female	3.96 mm	0.156 in	-40 C	105 ░C	6
