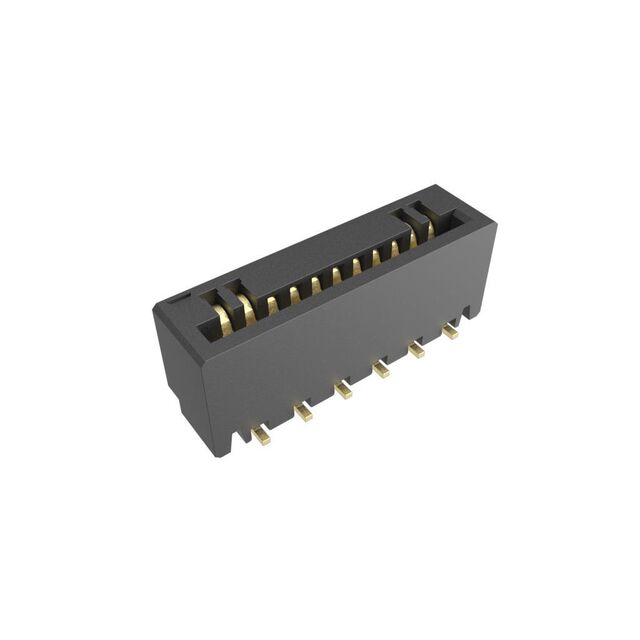

HFW11S Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
FFC/FPC FLEX CONN
| Part | Housing Color | Mating Cycles | Termination | Contact Finish | Height Above Board [z] | Height Above Board [z] | FFC, FCB Thickness | Contact Material | Material Flammability Rating | Pitch | Pitch | Cable End Type | Number of Positions | Voltage Rating | Housing Material | Connector/Contact Type | Flat Flex Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | FFC, FCB Thickness [custom] | FFC, FCB Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | 30 | Solder | Gold | 0.209 in | 5.3 mm | 0.3 mm | Phosphor Bronze | UL94 V-0 | 1 mm | 0.039 in | Straight Tapered | 11 | 100 V | Liquid Crystal Polymer (LCP) Halogen Free | Contacts Top | FFC FPC | -55 C | 105 ░C | Surface Mount | ||
 Amphenol ICC (FCI) | Black | 30 | Solder | Tin | 0.209 in | 5.3 mm | Phosphor Bronze | UL94 V-0 | 1 mm | 0.039 in | Straight Tapered | 11 | 100 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Contacts Vertical - 1 Sided | FFC FPC | -55 C | 85 °C | Surface Mount | 0.3 mm | 0.33 mm |
