1586965 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

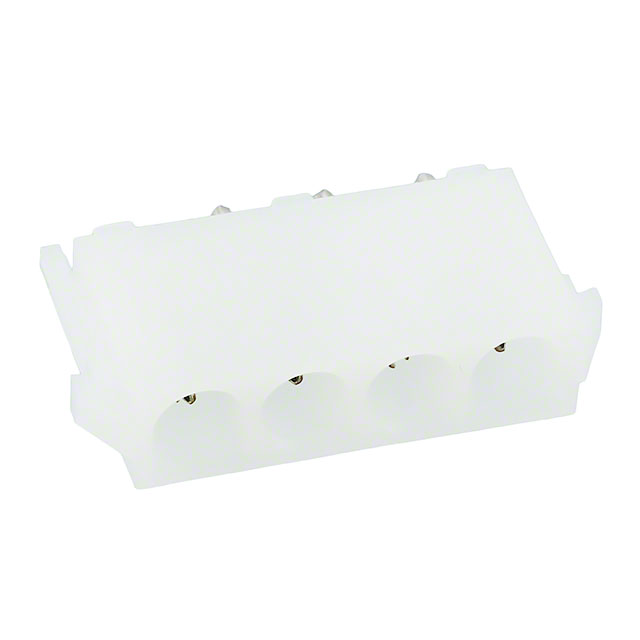

CONN HEADER VERT 4POS 6.35MM
| Part | Number of Rows | Applications | Number of Positions | Material Flammability Rating | Contact Type | Insulation Material | Fastening Type | Insulation Color | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Shape | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Style | Insulation Height | Insulation Height | Contact Material | Connector Type | Current Rating (Amps) | Number of Positions Loaded | Termination | Mounting Type | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 | General Purpose | 4 | UL94 V-2 | Male Pin | Nylon Polyamide (PA) | Locking Ramp | Natural | 600 VAC | -40 °C | 105 ░C | Board Guide Glow Wire Compliant | Circular | 3.94 mm | 0.155 " | 6.35 mm | 0.25 in | Board to Board Cable | 0.55 in | 13.97 mm | Phosphor Bronze | Header | 12 A | All | Solder | Through Hole | Shrouded - 4 Wall |
