UP0339 Series

Catalog

TRANS PREBIAS NPN/PNP SSMINI5

Part	Frequency - Transition	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Transistor Type	Resistor - Emitter Base (R2)	Supplier Device Package	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	DC Current Gain (hFE) (Min) @ Ic, Vce [Max]	Power - Max [Max]	Package / Case	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	Resistor - Base (R1)	Voltage - Collector Emitter Breakdown (Max) [Max]
Panasonic Electronic Components UP03397G0L	80 MHz 150 MHz	500 nA	1.2 V 250 mV	1 NPN 1 PNP - Pre-Biased (Dual)	10 kOhms 47 kOhms	SSMini5-F3	Surface Mount	35	80	125 mW	SOT-665	100 mA	30 V 50 V

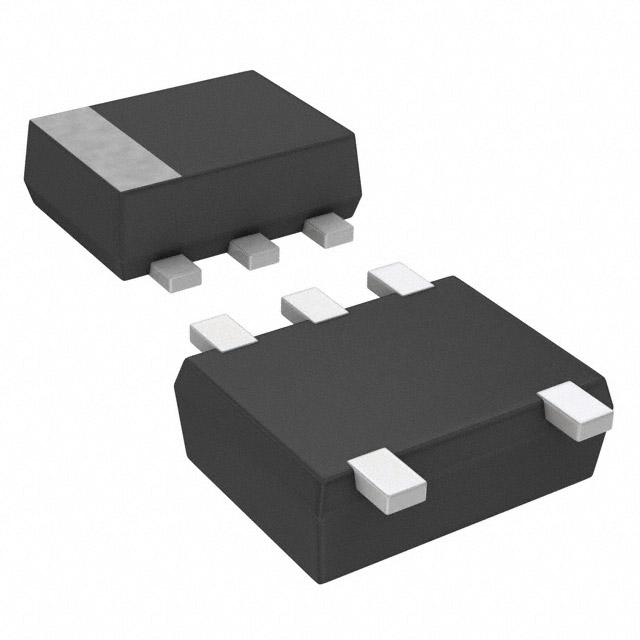

Panasonic Electronic Components UP0339600L	80 MHz 150 MHz	500 nA	250 mV	1 NPN 1 PNP - Pre-Biased (Dual)	10 kOhms 47 kOhms	SSMini5-F2	Surface Mount	35	80	125 mW	SOT-665	100 mA		10 kOhms 22 kOhms	50 V
Panasonic Electronic Components UP0339000L	80 MHz 150 MHz	500 nA	250 mV	1 NPN 1 PNP - Pre-Biased (Dual)	47 kOhms	SSMini5-F2	Surface Mount	80		125 mW	SOT-665	100 mA		10 kOhms 47 kOhms	50 V
