9546 Series
Manufacturer: Belden Inc.
Beta
⌘K

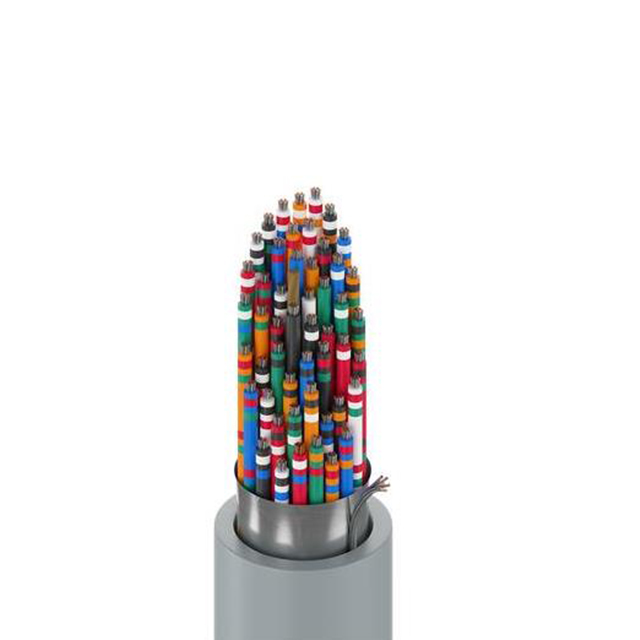

CABLE 50COND 24AWG CHRM SHD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Shield Type | Jacket Color | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Features | Length | Length | Jacket (Insulation) Material | Cable Type | Number of Conductors | Conductor Insulation | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Length [x] | Length [x] | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 0.49 " | 12.45 mm | 80 °C | -30 ░C | Copper Tinned | Foil | Chrome | 24 AWG | 7 | 32 AWG | 300 VDC | Drain Wire | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 50 | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 1.143 mm | 0.045 in | |||
Belden Inc. | Aluminum | 100 % | 0.49 " | 12.45 mm | 80 °C | -30 ░C | Copper Tinned | Foil | Chrome | 24 AWG | 7 | 32 AWG | 300 VDC | Drain Wire | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 50 | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 1.143 mm | 0.045 in | 100 ft | 30.5 m | |||
Belden Inc. | Aluminum | 100 % | 0.49 " | 12.45 mm | 80 °C | -30 ░C | Copper Tinned | Foil | Chrome | 24 AWG | 7 | 32 AWG | 300 VDC | Drain Wire | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 50 | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 1.143 mm | 0.045 in | Computer |
