SMA301 Series

Catalog

ULTRA THIN 7SEG 0.3" GREEN 10SMD

Part	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [custom]	Current - Test	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max)	Display Type	Common Pin	Color	Millicandela Rating	Number of Characters	Package / Case	Power Dissipation (Max) [Max]	Wavelength - Peak	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]

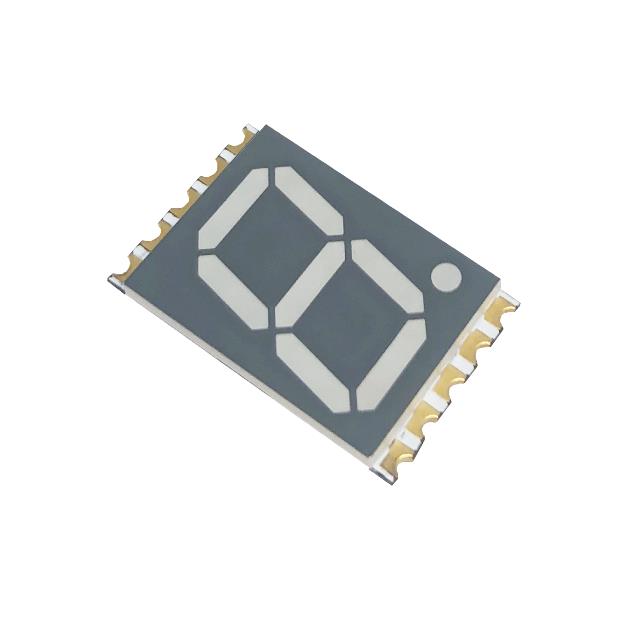

American Opto Plus LED SMA301SPG-UT GW	7.62 mm	0.3 in	0.512 in	13 mm	7.6 mm	0.132 in	3.35 mm	0.299 in	20 mA	2.8 V	120 mW	7-Segment	Common Anode	Green	15 mcd	1	10-SMD No Lead
American Opto Plus LED SMA301LE G/W	7.62 mm	0.3 in							20 mA	2 V		7-Segment	Common Anode	Red	8 mcd	1	10-SMD No Lead	70 mW	632 nm	0.169 "	10 mm	0.287 in	0.394 in	4.3 mm	7.3 mm
American Opto Plus LED SMA301LB G/W	7.62 mm	0.3 in							20 mA	3.2 V	120 mW	7-Segment	Common Anode	Blue	10 mcd	1	10-SMD No Lead		470 nm	0.169 "	10 mm	0.287 in	0.394 in	4.3 mm	7.3 mm
American Opto Plus LED SMA301YG G/W	7.62 mm	0.3 in							20 mA	2.1 V		7-Segment	Common Anode	Yellow-Green	8 mcd	1	10-SMD No Lead	70 mW	573 nm	0.169 "	10 mm	0.287 in	0.394 in	4.3 mm	7.3 mm
American Opto Plus LED SMA301LY G/W	7.62 mm	0.3 in							20 mA	2 V		7-Segment	Common Anode	Yellow	8 mcd	1	10-SMD No Lead	70 mW	593 nm	0.169 "	10 mm	0.287 in	0.394 in	4.3 mm	7.3 mm
American Opto Plus LED SMA301PG G/W	7.62 mm	0.3 in							20 mA	3.2 V	120 mW	7-Segment	Common Anode	Green	30 mcd	1	10-SMD No Lead		525 nm	0.169 "	10 mm	0.287 in	0.394 in	4.3 mm	7.3 mm
American Opto Plus LED SMA301LA G/W	7.62 mm	0.3 in							20 mA	2 V		7-Segment	Common Anode	Amber	8 mcd	1	10-SMD No Lead	70 mW	612 nm	0.169 "	10 mm	0.287 in	0.394 in	4.3 mm	7.3 mm
American Opto Plus LED SMA301LR G/W	7.62 mm	0.3 in							20 mA	2 V		7-Segment	Common Anode	Red	2 mcd	1	10-SMD No Lead	75 mw	650 nm	0.169 "	10 mm	0.287 in	0.394 in	4.3 mm	7.3 mm
