NPPN162 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 32POS 0.079 GOLD SMD

Part	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Color	Number of Rows [custom]	Contact Finish - Post	Termination	Contact Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Fastening Type	Mounting Type	Features	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Insulation Height [z]	Contact Length - Post [custom]
Sullins Connector Solutions NPPN162GFNP-RC	Flash	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	2 mm	0.079 in	Header Top or Bottom Entry	All	Flash	Gold	Black	2	Gold	Solder	Female Socket	UL94 V-0	-40 C	105 ░C	0.079 "	2 mm	Push-Pull	Surface Mount	Board Guide	2 A
Sullins Connector Solutions NPPN162AFCN-RC	Flash	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	2 mm	0.079 in	Header	All	Flash	Gold	Black	2	Gold	Solder	Female Socket	UL94 V-0	-40 C	105 ░C	0.079 "	2 mm	Push-Pull	Through Hole			2.4 mm	0.094 in	4.3 mm	0.169 "

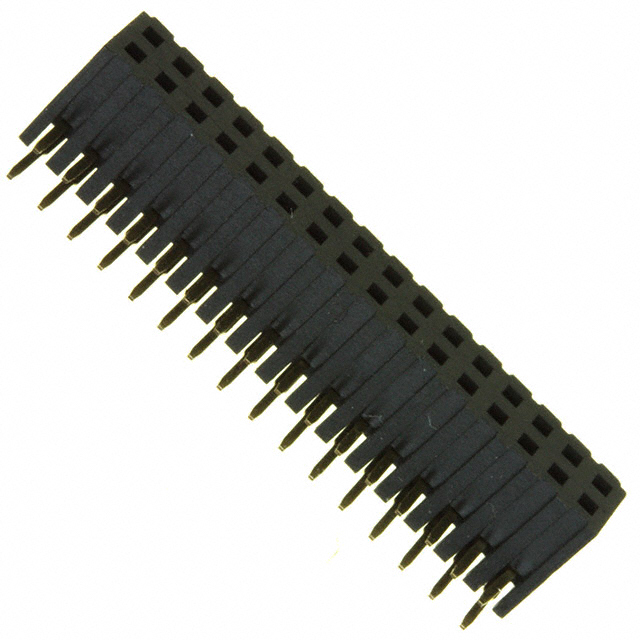

Sullins Connector Solutions NPPN162FJFN-RC	Flash	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	2 mm	0.079 in	Header	All	Flash	Gold	Black	2	Gold	Solder	Female Socket	UL94 V-0	-40 C	105 ░C	0.079 "	2 mm	Push-Pull	Right Angle Through Hole			3 mm	0.118 in	4.85 mm		0.191 in
Sullins Connector Solutions NPPN162AFEN-RC	Flash	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	2 mm	0.079 in	Header	All	Flash	Gold	Black	2	Gold	Solder	Female Socket	UL94 V-0	-40 C	105 ░C	0.079 "	2 mm	Push-Pull	Through Hole			2.79 mm		4.3 mm	0.169 "		0.11 in
