M2482 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

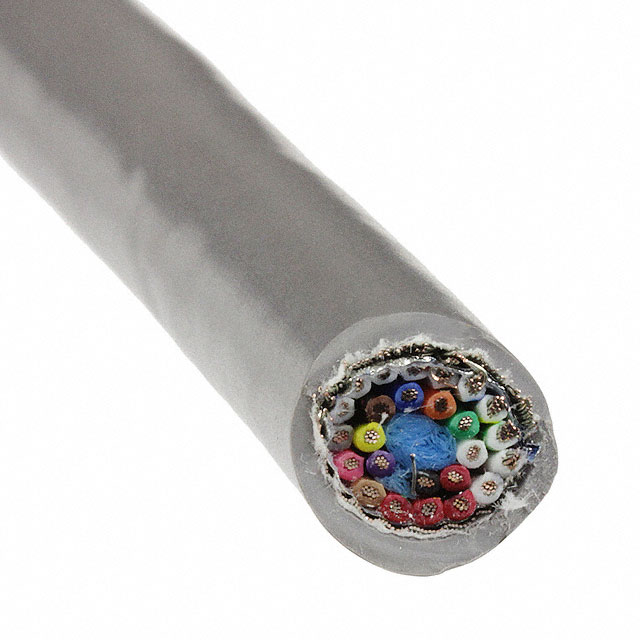

CABLE 25COND 22AWG SHLD
| Part | Shield Material | Shield Coverage | Number of Conductors [custom] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Voltage | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Features | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Length | Length | Wire Gauge | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 25 | Multi-Conductor | 9.91 mm | 0.39 in | Poly-Vinyl Chloride (PVC) | 300 VDC | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | Slate | Drain Wire Rip Cord | 28 AWG | 7 | Copper Tinned | 0.813 mm | 0.032 in | UL Style 2464 | 304.8 m | 1000 ft | 22 AWG | Braid Foil |
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 25 | Multi-Conductor | 9.91 mm | 0.39 in | Poly-Vinyl Chloride (PVC) | 300 VDC | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | Slate | Drain Wire Rip Cord | 28 AWG | 7 | Copper Tinned | 0.813 mm | 0.032 in | UL Style 2464 | 152.4 m | 500 ft | 22 AWG | Braid Foil |
