CCDN Series
Pluggable Terminal Blocks 6 Pos 5mm pitch Through Hole Header
Manufacturer: Phoenix Contact
Catalog
Pluggable Terminal Blocks 6 Pos 5mm pitch Through Hole Header
Beta
⌘K
Pluggable Terminal Blocks 6 Pos 5mm pitch Through Hole Header
Pluggable Terminal Blocks 6 Pos 5mm pitch Through Hole Header
Pluggable Terminal Blocks 6 Pos 5mm pitch Through Hole Header
| Part | Termination Style | Header Orientation | Current - IEC | Voltage - IEC | Number of Positions | Voltage - UL | Pitch [x] | Pitch [x] | Type | Features | Material Flammability Rating | Positions Per Level | Color | Housing Material | Number of Levels | Contact Mating Finish | Current - UL | Contact Tail Length | Contact Tail Length | Insulation Height | Insulation Height | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

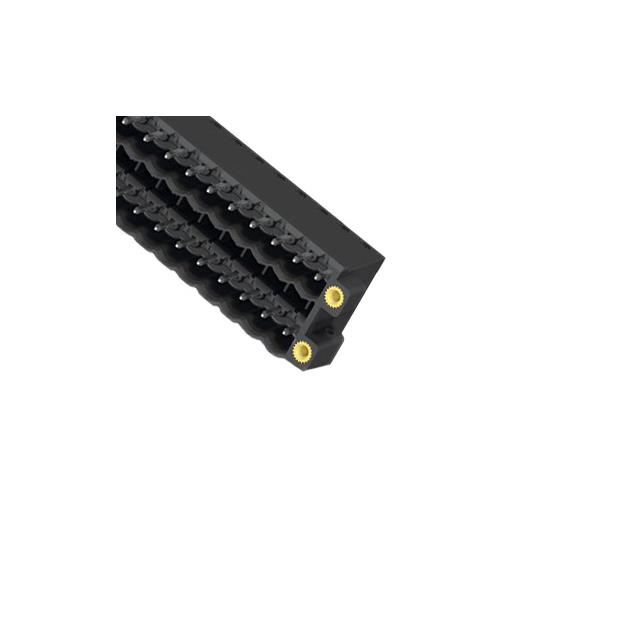

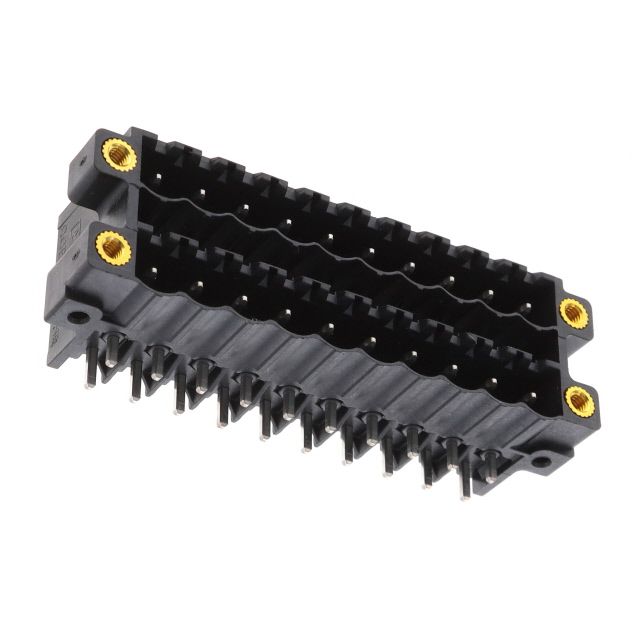

 Phoenix Contact | Solder | 90° Right Angle | 12 A | 400 V | 24 | 300 V | 5 mm | 0.197 in | Header Male Pins Shrouded (4 Side) | Mating Flange | UL94 V-0 | 12 | Black | Liquid Crystal Polymer (LCP) | 2 | Tin | 10 A | 0.102 in | 2.6 mm | 20.09 mm | 0.791 in | Through Hole |

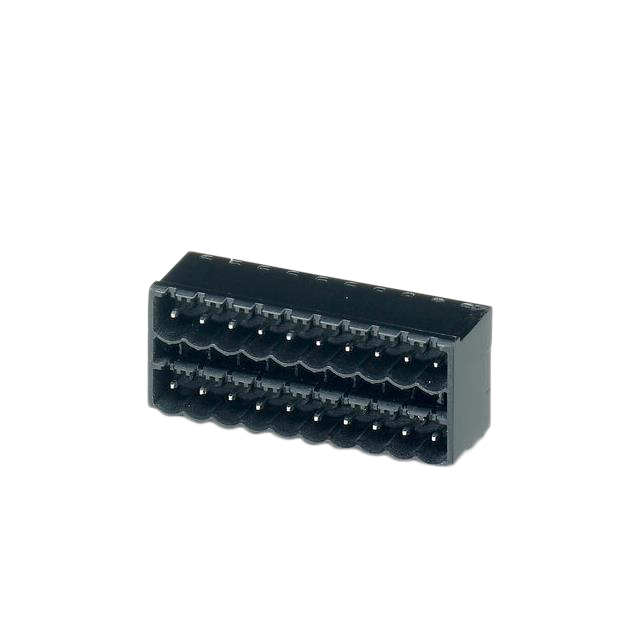

 Phoenix Contact | Solder | 90° Right Angle | 12 A | 400 V | 12 | 300 V | 5 mm | 0.197 in | Header Male Pins Shrouded (4 Side) | UL94 V-0 | 6 | Black | Liquid Crystal Polymer (LCP) | 2 | Tin | 10 A | 0.102 in | 2.6 mm | 20.09 mm | 0.791 in | Through Hole |
