BHR-24 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HEADER R/A 24POS 2.54MM
| Part | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Number of Rows [custom] | Fastening Type | Contact Finish - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Insulation Material | Contact Length - Post [x] | Contact Length - Post | Number of Positions Loaded | Connector Type | Contact Finish - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Features | Number of Positions | Style | Contact Shape | Termination | Mounting Type | Insulation Color | Voltage Rating | Material Flammability Rating | Shrouding | Contact Material | Insulation Height | Insulation Height | Current Rating (Amps) | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

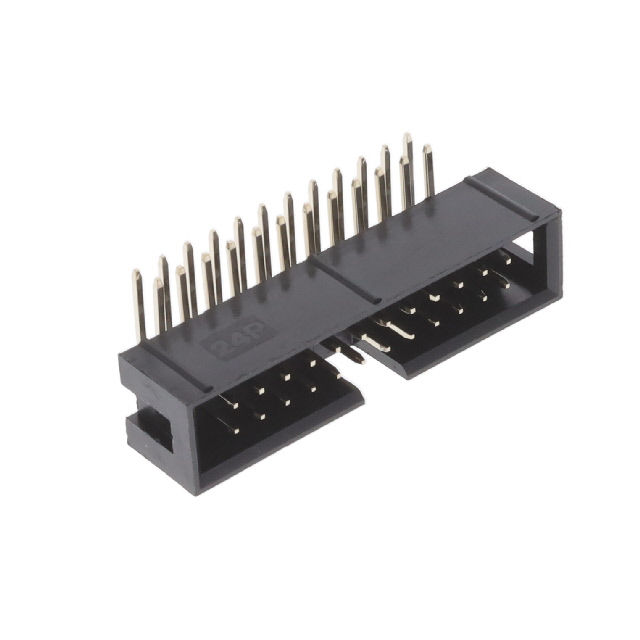

 Adam Tech | Flash | 0.1 " | 2.54 mm | 2 | Push-Pull | Gold | Flash | -40 C | 105 ░C | Male Pin | Polybutylene Terephthalate (PBT) Glass Filled | 0.134 " | 3.4 mm | All | Header | Gold | 0.1 in | 2.54 mm | Keying Slot | 24 | Board to Board Cable | Square | Solder | Right Angle Through Hole | Black | 250 VAC | UL94 V-0 | Shrouded - 4 Wall | Brass | 0.356 " | 9.05 mm | ||
Adam Tech | 0.1 " | 2.54 mm | 2 | Push-Pull | Gold | Flash | -40 C | 105 ░C | Male Pin | Thermoplastic | All | Header | Tin | 0.1 in | 2.54 mm | Keying Slot | 24 | Board to Board Cable | Square | Solder | Surface Mount | Black | 250 VAC | UL94 V-0 | Shrouded - 4 Wall | Brass | 0.413 in | 10.49 mm | 3 A | ||||

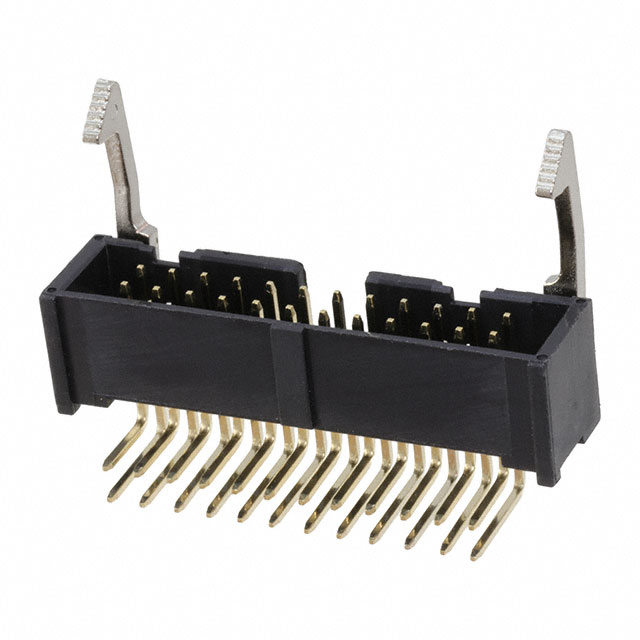

 Adam Tech | Flash | 0.1 " | 2.54 mm | 2 | Latch Lock/Eject Hooks Long | Gold | Flash | -40 C | 105 ░C | Male Pin | Polybutylene Terephthalate (PBT) Glass Filled | 0.126 " | All | Header | Gold | 0.1 in | 2.54 mm | Keying Slot | 24 | Board to Board Cable | Square | Solder | Right Angle Through Hole | Black | 350 VAC | UL94 V-0 | Shrouded - 4 Wall | Brass | 0.354 in | 9 mm | 3 A | 3.2 mm |
