M2044LL Series

Catalog

SWITCH TOGGLE DP3T 6A 125V

Part	Actuator Material	Electrical Life	Switch Function	Actuator Type	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Bushing Thread	Mounting Type	Circuit	Voltage Rating - DC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Features	Illumination

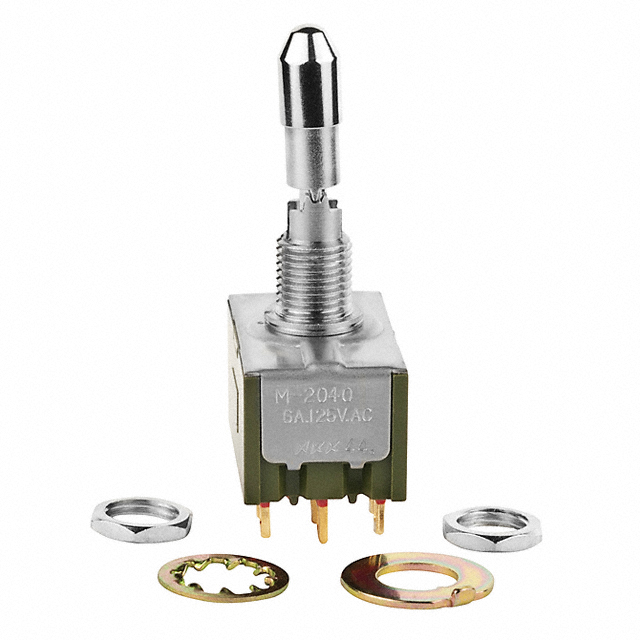

NKK Switches M2044LL1A01	Brass Chrome Plated	25000 Steps	On-On-On	Locking Lever	3 A 6 A	6.5 mm	16.5 mm	1/4-40	Panel Mount	DP3T	30 V	Solder Lug	85 °C	-30 ░C	125 V	Jumper needed to achieve triple throw	Non-Illuminated

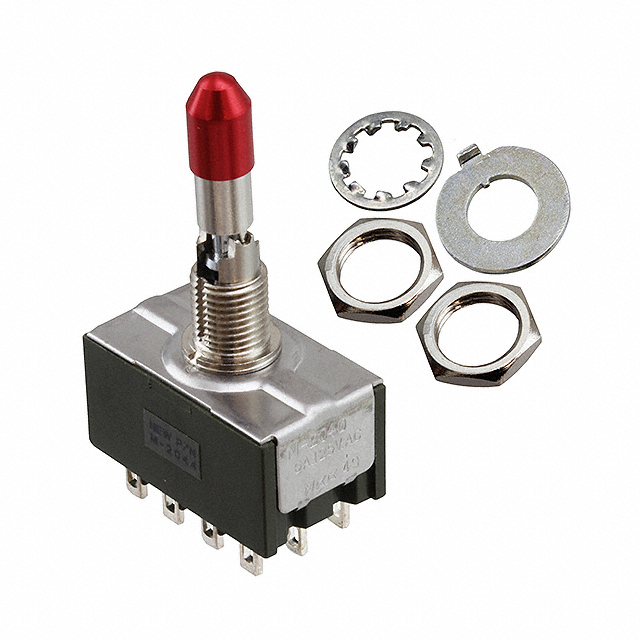

NKK Switches M2044LL1W01-C	Brass Chrome Plated	25000 Steps	On-On-On	Locking Lever	3 A 6 A	6.5 mm	16.5 mm	1/4-40	Panel Mount	DP3T	30 V	Solder Lug	85 °C	-30 ░C	125 V	Jumper needed to achieve triple throw	Non-Illuminated
NKK Switches M2044LL1W01	Brass Chrome Plated	25000 Steps	On-On-On	Locking Lever	3 A 6 A	6.5 mm	16.5 mm	1/4-40	Panel Mount	DP3T	30 V	Solder Lug	85 °C	-30 ░C	125 V	Jumper needed to achieve triple throw	Non-Illuminated
