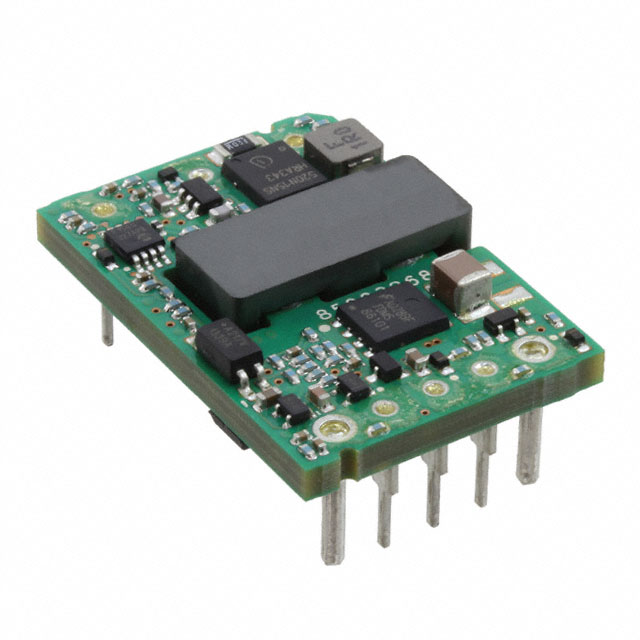

KSTW006 Series

Catalog

DC DC CONVERTER 5V 30W

Part	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Current - Output (Max) [Max]	Features	Efficiency	Number of Outputs	Applications	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Type	Power (Watts)	Control Features	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation
OmniOn Power™ KSTW006A0A41-SRZ	8-SMD Module 1/16 Brick	9.3 mm	1.3 in	22.9 mm	0.9 in	33 mm	0.37 in	Surface Mount	6 A	OCP OTP OVP Remote On/Off UVLO	91 %	1	ITE (Commercial)	5 V	85 °C	-40 C	Isolated Module	30 Watts	Active Low Enable	75 V	36 V	2250 VDC
OmniOn Power™ KSTW006A0A41-SRZ	8-SMD Module 1/16 Brick	9.3 mm	1.3 in	22.9 mm	0.9 in	33 mm	0.37 in	Surface Mount	6 A	OCP OTP OVP Remote On/Off UVLO	91 %	1	ITE (Commercial)	5 V	85 °C	-40 C	Isolated Module	30 Watts	Active Low Enable	75 V	36 V	2250 VDC

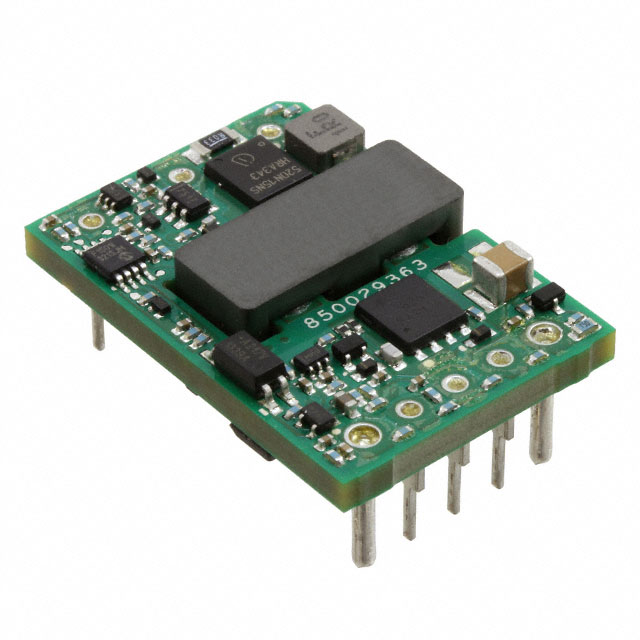

OmniOn Power™ KSTW006A0A41Z	8-DIP Module 1/16 Brick	9.3 mm	1.3 in	22.9 mm	0.9 in	33 mm	0.37 in	Through Hole	6 A	OCP OTP OVP Remote On/Off UVLO	90 %	1	ITE (Commercial)	5 V	85 °C	-40 C	Isolated Module	30 Watts	Active Low Enable	75 V	36 V	2250 VDC
OmniOn Power™ KSTW006A0A41Z	8-DIP Module 1/16 Brick	9.3 mm	1.3 in	22.9 mm	0.9 in	33 mm	0.37 in	Through Hole	6 A	OCP OTP OVP Remote On/Off UVLO	90 %	1	ITE (Commercial)	5 V	85 °C	-40 C	Isolated Module	30 Watts	Active Low Enable	75 V	36 V	2250 VDC
