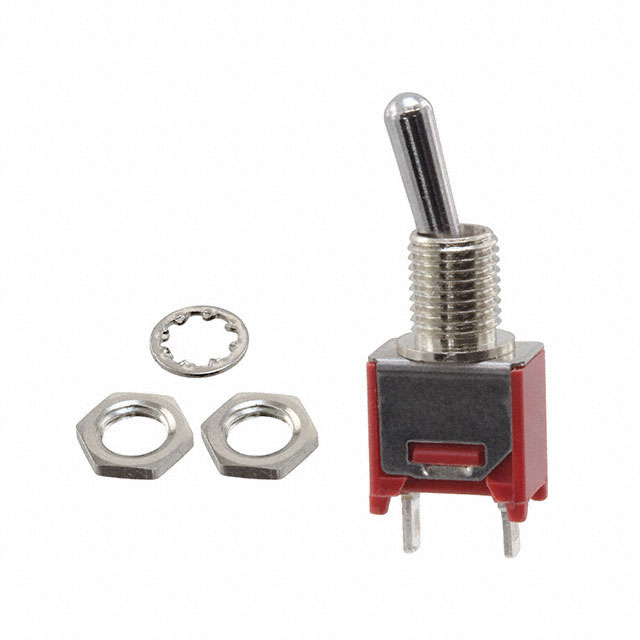

TMS6T Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH TOGGLE SPST 3A 120V
| Part | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Features | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Bushing Thread | Actuator Type | Circuit | Switch Function | Termination Style | Illumination | Mounting Type | Voltage Rating - AC | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 28 V | 85 °C | -30 ░C | Process Sealed | 3 A | 4.95 mm | 10-48 | Standard Round | SPST | On-Off | Solder Lug | Non-Illuminated | Panel Mount | 120 V | |
 TE Connectivity AMP Connectors | 20 V | 85 °C | -30 ░C | Process Sealed | 0.4 VA | Unthreaded | Standard Round | SPST | On-Off | PC Pin | Non-Illuminated | Through Hole | 20 V | 7.62 mm |
