FR01FR16 Series

Catalog

SWITCH ROTARY DIP HEX 0.1A 5V

Part	Length [x]	Length [x]	Electrical Life	Body Material	Mechanical Life	Current Rating (Amps)	Contact Finish	Contact Material	Mounting Type	Number of Positions	Actuator Level	Circuit	Pitch	Pitch	Actuator Type	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style
NKK Switches FR01FR16P	0.394 in	10 mm	10000 Cycles	Polyamide (PA) Nylon Glass Filled	10000 Steps	100 mA	Gold	Copper Alloy	Through Hole	16	Flush Recessed	Hexadecimal	2.54 mm	0.1 "	Rotary for Tool	0.15 in	3.81 mm	5 V	85 °C	-25 °C	PC Pin

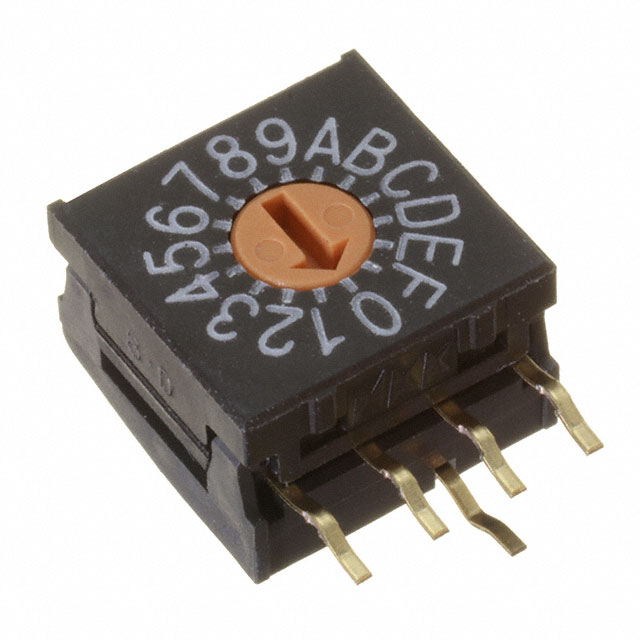

NKK Switches FR01FR16H	0.394 in	10 mm	10000 Cycles	Polyamide (PA) Nylon Glass Filled	10000 Steps	100 mA	Gold	Copper Alloy	Right Angle Through Hole	16	Flush Recessed	Hexadecimal	2.54 mm	0.1 "	Rotary for Tool	0.394 in	10 mm	5 V	85 °C	-25 °C	PC Pin

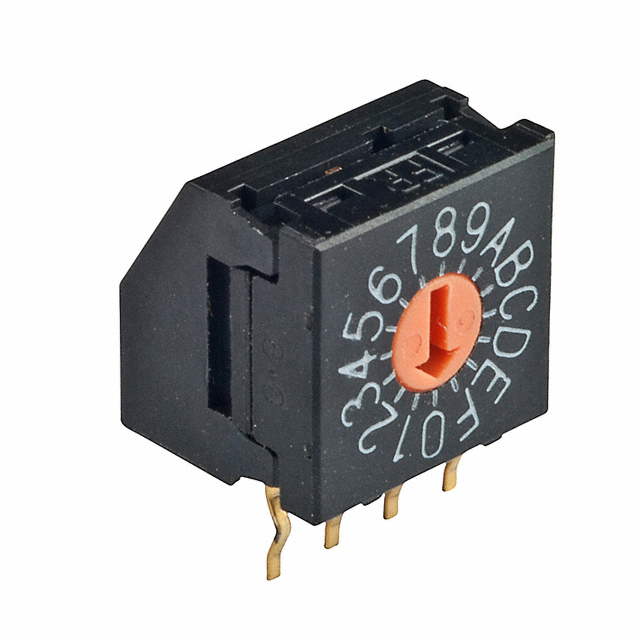

NKK Switches FR01FR16H-06XL	0.394 in	10 mm	10000 Cycles	Polyamide (PA) Nylon Glass Filled	10000 Steps	100 mA	Gold	Copper Alloy	Right Angle Through Hole	16	Flush Recessed	Hexadecimal	2.54 mm	0.1 "	Rotary for Tool	0.394 in	10 mm	5 V	85 °C	-25 °C	PC Pin
NKK Switches FR01FR16P-W-S	0.394 in	10 mm	10000 Cycles	Polyamide (PA) Nylon Glass Filled	10000 Steps	100 mA	Gold	Copper Alloy	Through Hole	16	Flush Recessed	Hexadecimal	2.54 mm	0.1 "	Rotary for Tool	0.15 in	3.81 mm	5 V	85 °C	-25 °C	PC Pin

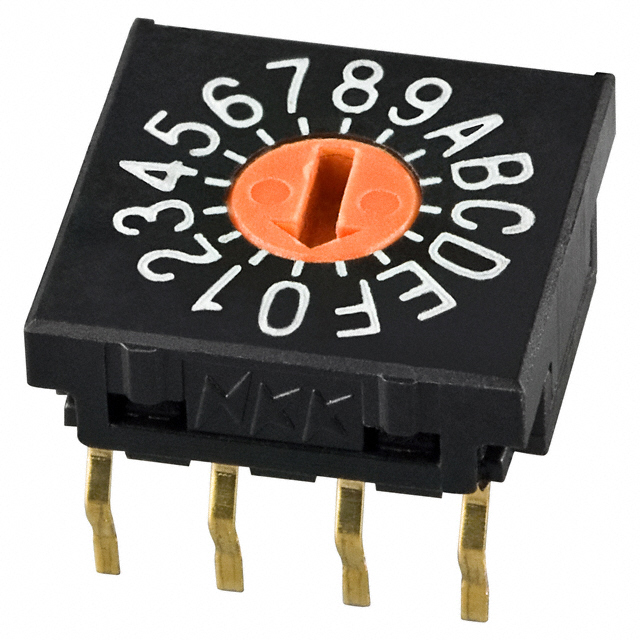

NKK Switches FR01FR16P-S	0.394 in	10 mm	10000 Cycles	Polyamide (PA) Nylon Glass Filled	10000 Steps	100 mA	Gold	Copper Alloy	Through Hole	16	Flush Recessed	Hexadecimal	2.54 mm	0.1 "	Rotary for Tool	0.15 in	3.81 mm	5 V	85 °C	-25 °C	PC Pin
NKK Switches FR01FR16H-S	0.394 in	10 mm	10000 Cycles	Polyamide (PA) Nylon Glass Filled	10000 Steps	100 mA	Gold	Copper Alloy	Right Angle Through Hole	16	Flush Recessed	Hexadecimal	2.54 mm	0.1 "	Rotary for Tool	0.394 in	10 mm	5 V	85 °C	-25 °C	PC Pin
NKK Switches FR01FR16H-06XL-W-S	0.394 in	10 mm	10000 Cycles	Polyamide (PA) Nylon Glass Filled	10000 Steps	100 mA	Gold	Copper Alloy	Right Angle Through Hole	16	Flush Recessed	Hexadecimal	2.54 mm	0.1 "	Rotary for Tool	0.394 in	10 mm	5 V	85 °C	-25 °C	PC Pin
