3RS7005 Series

Manufacturer: Siemens

Catalog

SWITCHABLE MULTI-RANGE CNVRTR, 2

Part	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Voltage - Supply	Input Range (Additional)	Input Range (Additional)	Isolation	Input Range (Current, Voltage) [custom]	Input Range (Current, Voltage) [custom]	Type	Output Range [Max]	Output Range [Min]	Input Type	Voltage - Supply [Min]	Voltage - Supply [Max]
Siemens 3RS70051FE00	Current Voltage	-25 °C	60 °C	DIN Rail	Screw Terminal	24 VAC	100 Ohm	330k	50 V	0 V 10 V	0 mA 20 mA	Isolation Amplifier	10 VDC 20 mA	0 mA 0 VDC	Current Resistance Voltage

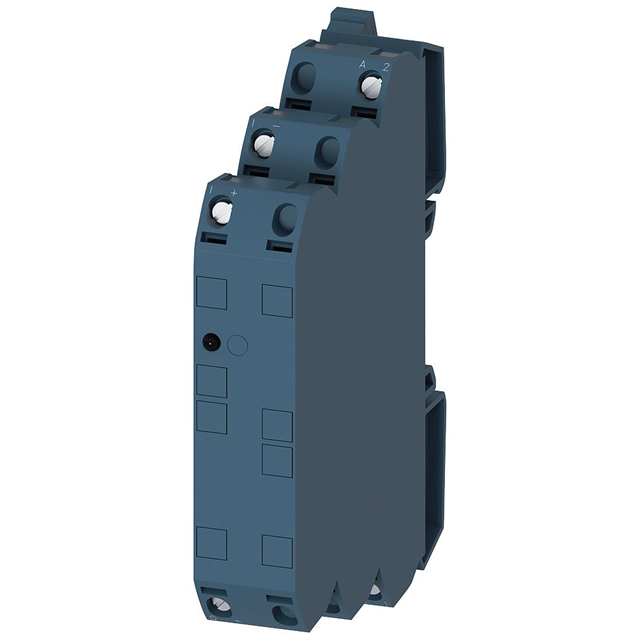

Siemens 3RS70051FW00	Current Voltage	-25 °C	60 °C	DIN Rail	Screw Terminal		100 Ohm	330k	300 V	0 V 10 V	0 mA 20 mA	Signal Conditioner	10 VDC 20 mA	0 mA 0 VDC	Current Resistance Voltage	24 VAC	240 VAC
Siemens 3RS70052FE00	Current Voltage	-25 °C	60 °C	DIN Rail	Spring Terminal	24 VAC	100 Ohm	330k	50 V	0 V 10 V	0 mA 20 mA	Isolation Amplifier	10 VDC 20 mA	0 mA 0 VDC	Current Resistance Voltage

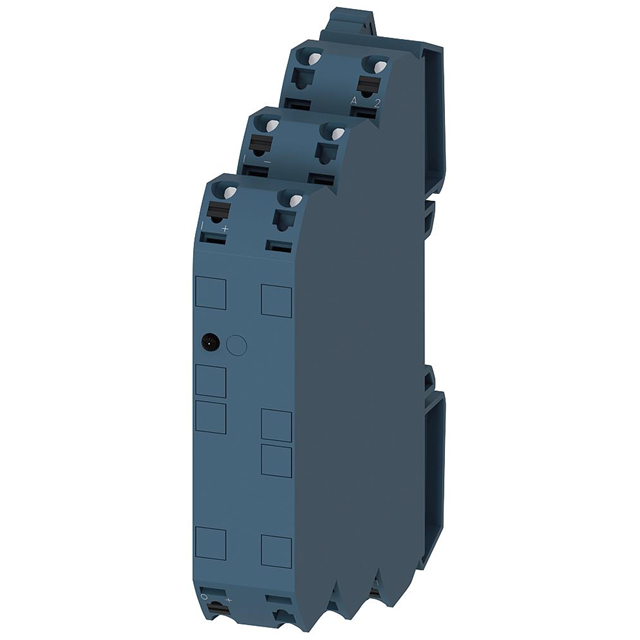

Siemens 3RS70052FW00	Current Voltage	-25 °C	60 °C	DIN Rail	Spring Terminal		100 Ohm	330k	300 V	0 V 10 V	0 mA 20 mA	Signal Conditioner	10 VDC 20 mA	0 mA 0 VDC	Current Resistance Voltage	24 VAC	240 VAC
Siemens 3RS70052KE00		-25 °C	60 °C	DIN Rail	Spring Terminal	24 VAC	100 Ohm	330k	50 V	0 V 10 V	0 mA 20 mA	Isolation Amplifier			Current Resistance Voltage
Siemens 3RS70051KE00		-25 °C	60 °C	DIN Rail	Screw Terminal	24 VAC	100 Ohm	330k	50 V	0 V 10 V	0 mA 20 mA	Isolation Amplifier			Current Resistance Voltage
Siemens 3RS70051KW00		-25 °C	60 °C	DIN Rail	Screw Terminal		100 Ohm	330k	300 V	0 V 10 V	0 mA 20 mA	Signal Conditioner			Current Resistance Voltage	24 VAC	240 VAC
Siemens 3RS70052KW00		-25 °C	60 °C	DIN Rail	Spring Terminal		100 Ohm	330k	300 V	0 V 10 V	0 mA 20 mA	Signal Conditioner			Current Resistance Voltage	24 VAC	240 VAC
