R16157 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

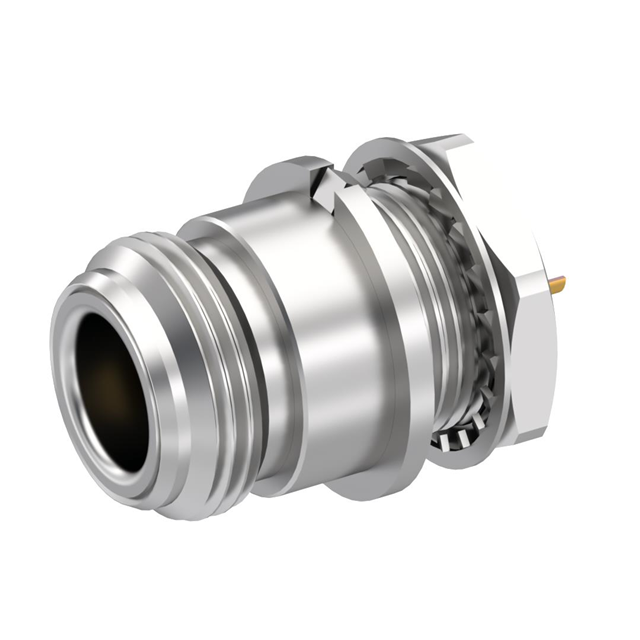

N / BULKHEAD JACK RECEPTACLE FRO
| Part | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Insertion Loss | Mating Cycles | Voltage Rating | Body Finish | Dielectric Material | Connector Type | Fastening Type | Number of Ports | Impedance | Housing Color | Mounting Type | Center Contact Material | Frequency - Max [Max] | Connector Style | Shield Termination | Contact Termination | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | 155 C | -55 C | Gold | 0.15 dB | 500 | 1400 V | White Bronze | Polytetrafluoroethylene (PTFE) | Female Socket Jack | Threaded | 1 | 50 Ohms | Silver | Panel Mount | Beryllium Copper | 11 GHz | N Type | Solder | Solder Cup | Bulkhead - Rear Side Nut |
 Radiall USA, Inc. | Brass | 155 C | -55 C | Gold | 0.15 dB | 500 | 1400 V | White Bronze | Polytetrafluoroethylene (PTFE) | Female Socket Jack | Threaded | 1 | 50 Ohms | Silver | Panel Mount | Beryllium Copper | 11 GHz | N Type | Solder | Solder Cup | Bulkhead - Rear Side Nut |
