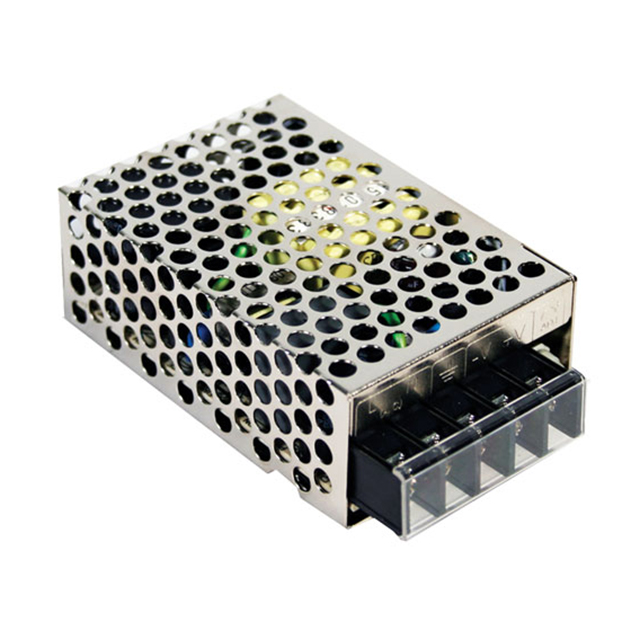

RS-25 Series

Catalog

AC/DC CONVERTER 48V 27W

Part	Type	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Voltage - Output 1	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current - Output 1	Efficiency	Mounting Type	Approval Agency
MEAN WELL USA Inc. RS-25-48	Enclosed	3000 V	28 mm	3.07 in	2.01 "	51 mm	78 mm	1.1 in	Adjustable Output Universal Input	88 VAC 125 VDC	264 VAC 373 VDC	27 W	48 V	1	70 °C	-20 °C	ITE (Commercial)	570 mA	85 %	Chassis Mount	CB CCC CE cURus TUV
MEAN WELL USA Inc. RS-25-5	Enclosed	3000 V	28 mm	3.07 in	2.01 "	51 mm	78 mm	1.1 in	Adjustable Output Universal Input	88 VAC 125 VDC	264 VAC 373 VDC	25 W	5 V	1	70 °C	-20 °C	ITE (Commercial)	5 A	78.5 %	Chassis Mount	CB CCC CE cURus TUV
MEAN WELL USA Inc. RS-25-3.3	Enclosed	3000 V	28 mm	3.07 in	2.01 "	51 mm	78 mm	1.1 in	Adjustable Output Universal Input	88 VAC 125 VDC	264 VAC 373 VDC	20 W	3.3 V	1	70 °C	-20 °C	ITE (Commercial)	6 A	73.5 %	Chassis Mount	CB CCC CE cURus TUV
MEAN WELL USA Inc. RS-25-24	Enclosed	3000 V	28 mm	3.07 in	2.01 "	51 mm	78 mm	1.1 in	Adjustable Output Universal Input	88 VAC 125 VDC	264 VAC 373 VDC	26 W	24 V	1	70 °C	-20 °C	ITE (Commercial)	1.1 A	86 %	Chassis Mount	CB CCC CE cURus TUV
